305-026-500-504

Edgeboard Connectors Overview

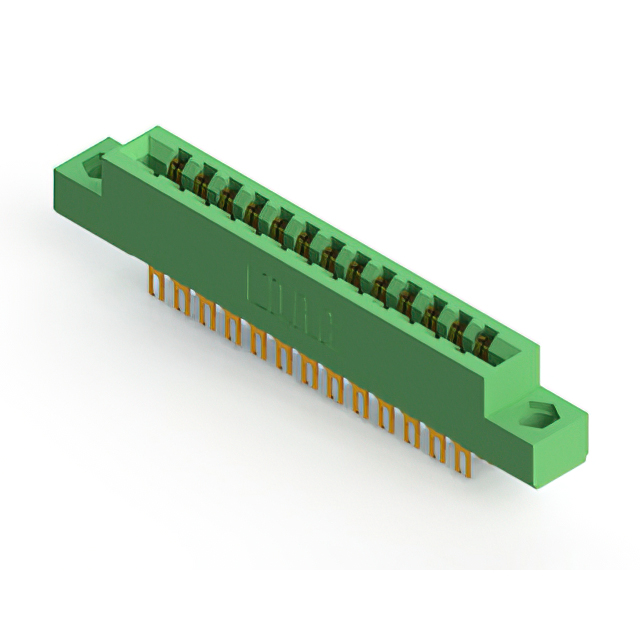

The EDAC Inc. 305-026-500-504 is a standard card edge connector from the 305 series, designed for reliable signal transmission in electronic assemblies. This receptacle features 26 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. It utilizes gold-plated copper alloy contacts rated for 5 A current. The component employs solder eyelet termination and is intended for panel mounting in a vertical orientation.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure durable electrical connectivity
• Solder eyelet termination provides secure PCB attachment
• Vertical panel mount design facilitates structured integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces

Edgeboard Connectors Procurement Notes

Verify specific availability status through authorized distributors as stock levels fluctuate. Confirm that the ordering suffix matches the required contact termination style and housing material specifications. Ensure compliance with RoHS directives and verify environmental operating temperature ranges against application requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 3.96 mm pitch card edge interface is required for panel-mounted applications. The 26-position configuration suits moderate-density signal routing needs. Verify compatibility with the target printed circuit board thickness of 1.57 mm to ensure proper mechanical engagement and electrical performance during operation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which specializes in .156 inch (3.96 mm) spacing card edge connectors. The series offers various position counts and termination options to accommodate diverse electronic packaging requirements while maintaining consistent mechanical dimensions and electrical characteristics across the product line.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include EDAC 305-020-500-504 and 305-038-500-504, differing only in position count. Cross-series replacements require verification of pitch, board thickness, and termination type compatibility.
