305-058-521-207

$11.11

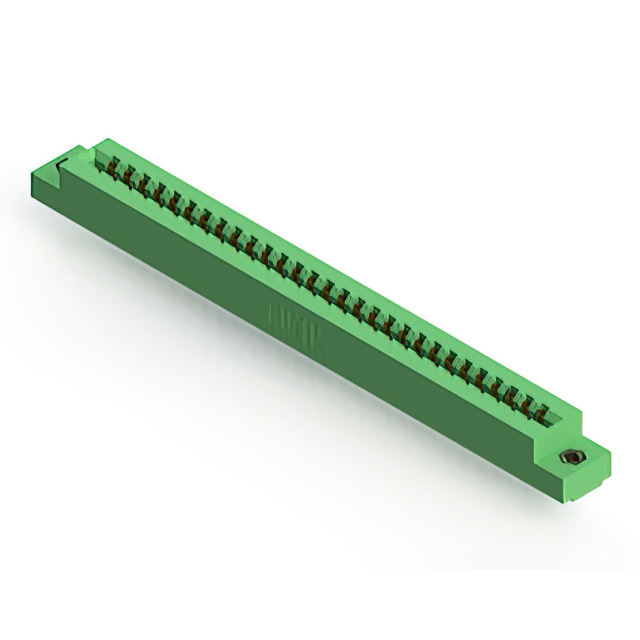

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:ebe2307a39a8 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-058-521-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-058-521-207

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-058-521-207

305-058-521-207

Edgeboard Connectors Overview

The EDAC Inc. 305-058-521-207 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 58 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). It utilizes gold-plated copper alloy contacts and a green thermoplastic insulator body.

Edgeboard Connectors Feature Summary

Dual-edge configuration for secure board retention
Low profile insulator body design
Gold-plated contacts for reliable conductivity

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Medical devices
Consumer electronics

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability status. Check for regional distribution restrictions or discontinuation notices prior to procurement. Ensure compatibility with existing PCB layouts and mating requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with 58 positions is required. Verify that the target PCB thickness matches the 1.57 mm specification. Confirm that the 3.96 mm pitch aligns with the design constraints. Consider the vertical panel mount style for integration.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305 series is characterized by its robust construction and suitability for general-purpose electronic applications requiring reliable signal transmission.
