Edgeboard Connectors Overview

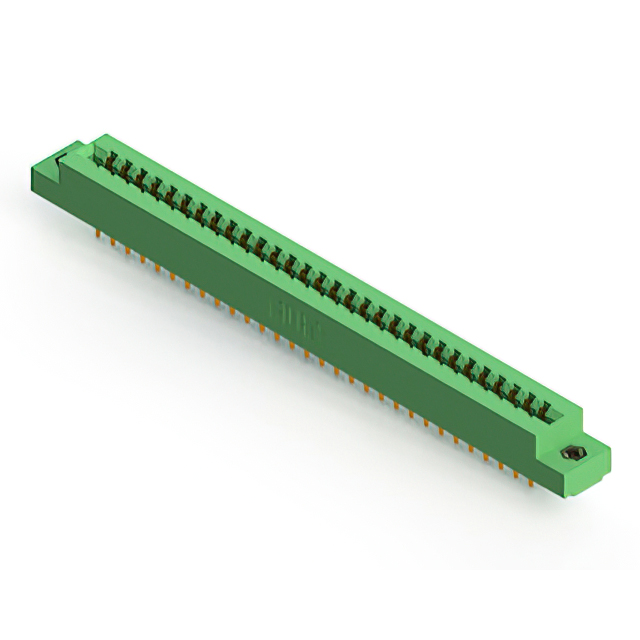

The EDAC 305-060-520-508 is a standard card edge connector featuring 60 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm. The component employs gold-plated copper alloy contacts for reliable signal transmission and offers a continuous current rating of 5 A. Designed for panel mounting, it features a vertical orientation and a thermoplastic insulator body. The connector supports an operating temperature range from -40°C to +105°C and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating non-specified card types
• Gold-plated copper alloy contacts ensure durable electrical performance
• Thermoplastic insulator body provides structural stability and thermal resistance
• Panel mount installation style with vertical orientation for secure integration

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Computing hardware peripheral interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm compatibility with required PCB thicknesses and polarizing key configurations. Ensure that the selected variant matches the intended panel mounting requirements and environmental operating conditions. Cross-reference the part number with authorized distributors to confirm current availability status and lead times prior to finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a high-density interface with 60 positions is required for dual-edge card applications. Consider the 3.96 mm pitch and 1.57 mm board thickness compatibility during mechanical design. Evaluate the 5 A current rating and temperature range against the system's electrical and thermal loads. Confirm that the vertical panel mount style aligns with the enclosure layout and assembly constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are engineered for robust connectivity in demanding environments. The series offers various position counts and row configurations to suit diverse application needs. These connectors are characterized by their reliable gold-plated contacts and thermoplastic construction, ensuring long-term performance in industrial and commercial electronic systems requiring secure board-to-board or board-to-panel connections.

Edgeboard Connectors Replacement Considerations

Compatible substitutes within the same series include 305-060-520-204 and 305-060-520-507. Verify that alternative part numbers match the exact pin count, pitch, and mounting style before implementation.
