Edgeboard Connectors Overview

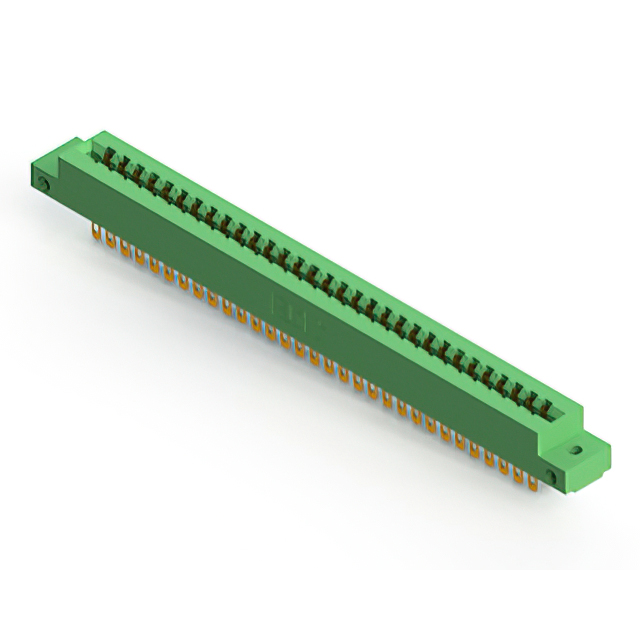

The EDAC Inc. 305-062-500-512 is a standard card edge connector designed for dual female termination on non-specified double-sided circuit boards. It features 62 positions arranged in two rows with a 3.96 mm (0.156 inch) pitch. The component utilizes gold-plated copper alloy contacts and a thermoplastic polyester insulator, rated for 5 A current. It supports panel mounting at a vertical angle and accommodates board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure mating with double-sided circuit cards
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Thermoplastic polyester housing provides structural stability and thermal endurance
• Vertical panel mount style facilitates organized integration within equipment enclosures

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications infrastructure modules
• Automotive electronic control units
• Medical device internal interconnects

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness, flange dimensions, and material certifications. Ensure that the procurement channel provides valid traceability records matching the manufacturer's specifications. Cross-reference the part number with authorized distributor lists to avoid counterfeit components. Confirm compliance requirements such as RoHS status prior to finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this connector when a high-density interface with 62 positions is required for double-sided PCB applications. The 3.96 mm pitch allows for standard routing densities while maintaining robust mechanical locking. Consider the vertical panel mount orientation for space-constrained chassis designs. Verify that the target circuit board thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper contact engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 305-062 variant specifically addresses applications requiring moderate-to-high pin counts with durable metal alloy contacts. It serves as a critical interconnect solution bridging modular circuit boards to mainframe systems.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives within the 305 or 345 series. Verify dimensional compatibility and electrical ratings before considering cross-references from other manufacturers.
