305-062-520-502

Edgeboard Connectors Overview

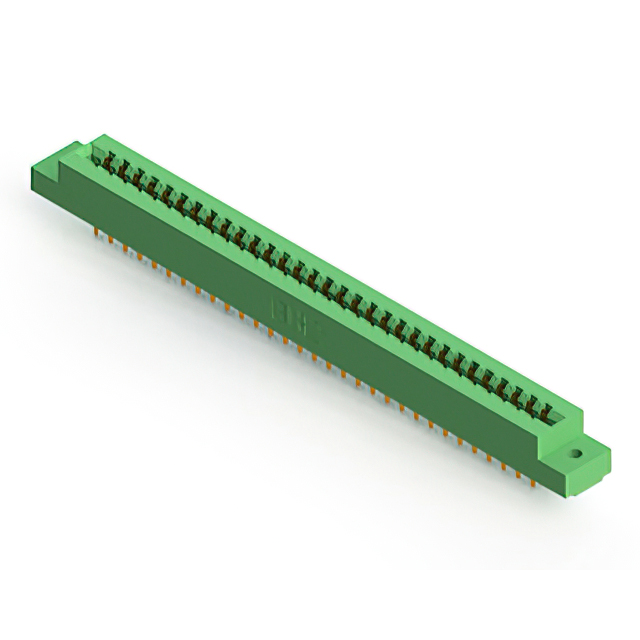

The EDAC Inc. 305-062-520-502 is a standard card edge connector designed for dual-row board-to-board or backplane applications. It features 62 positions with a 3.96 mm (0.156 inch) pitch, accommodating a PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. Rated for 5 A current per contact, it employs a solder pin termination method for secure mounting. Constructed with a thermoplastic housing, the component supports vertical panel installation and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 62 connection points for high-density signal routing
• Gold-plated copper alloy contacts ensuring durable electrical performance
• Vertical panel mount style with solder pin termination for structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust backplane connections
• Communication equipment utilizing standard card edge interfaces
• Test and measurement instrumentation boards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact termination type, plating specifications, and packaging details. Ensure compatibility with the target printed circuit board thickness of 1.57 mm and verify that the 3.96 mm pitch aligns with the design layout. Confirm RoHS compliance status through the latest product documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required for vertical panel mounting applications. The 5 A current rating and gold-plated contacts make it suitable for environments demanding reliable conductivity. Ensure the design accommodates the specific solder pin termination style and verify thermal operating limits meet the application's environmental requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and termination options to support diverse board interface needs. As a header receptacle, it mates with corresponding card-edge PCBs, forming a critical interconnect solution in modular electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants such as 305-062-520-501 or 305-062-520-504 if different termination styles or housing materials are needed. Verify mechanical dimensions and electrical ratings match exactly before substituting.
