305-064-521-558

Edgeboard Connectors Overview

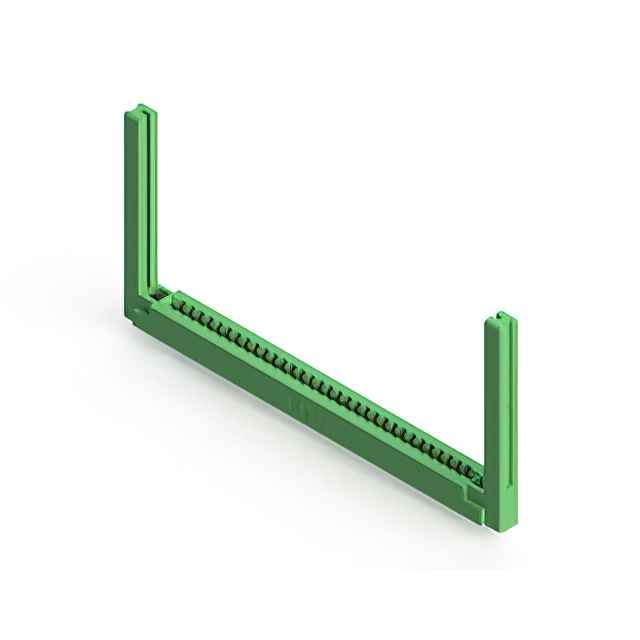

The EDAC Inc. 305-064-521-558 is a dual-edge female card edge connector designed for board-to-board applications. It features 64 positions with a contact spacing of 0.156 inches (3.96mm) and a row spacing of 0.140 inches (3.56mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a green thermoplastic polyester insulator, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit supports a continuous current rating of 5A and withstands 1800VACrms dielectric voltage.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Features a low-profile insulator body for compact assembly requirements
• Provides flush mount installation with top opening and threaded insert flange

Edgeboard Connectors Applications

• Industrial control systems requiring robust board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Consumer electronics manufacturing with space-constrained layouts

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm plating thickness and material specifications. Ensure that the receiving facility has appropriate handling procedures for surface-mount or through-hole variants as applicable. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm current availability and lead times before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female interface is required for 0.062-inch thick PCBs. The 0.156-inch pitch accommodates standard industrial board designs. Consider the 5A current rating and 1800VACrms insulation capability for high-power or high-voltage environments. The flush mount flange design aids in stable mechanical integration within enclosed chassis structures.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of edgeboard connectors. The series is characterized by its durability and suitability for harsh environments. The 305-064-521-558 variant specifically addresses applications needing a 64-position interface with dual-edge engagement capabilities.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes. Verify compatibility regarding pin count, pitch, and mounting style before replacing.
