305-070-555-512

Edgeboard Connectors Overview

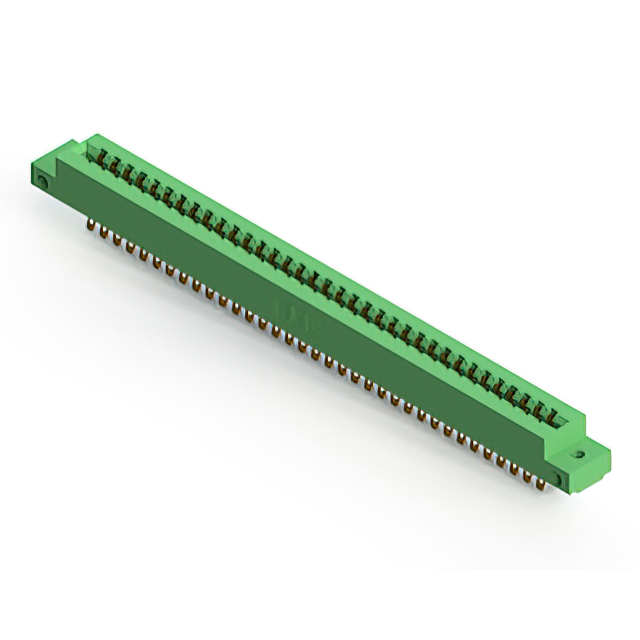

The EDAC Inc. 305-070-555-512 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 70 positions in a dual female configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and solder pin termination. It supports board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Telecommunications equipment utilizing standard card edge modules
• Automotive electronics assemblies needing high-reliability connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm contact plating thickness and housing color specifications. Ensure compatibility with target PCB thickness limits before procurement. Confirm RoHS compliance status through current manufacturer datasheets as regulatory requirements may evolve over time.

Edgeboard Connectors Selection Notes

Select this component when a 70-position dual-edge connector is required for vertical panel mounting. The 3.96 mm pitch accommodates standard board designs. Verify that the application environment stays within the specified -40°C to +105°C operating temperature range and that the mating card thickness falls between 1.37 mm and 1.78 mm.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic assembly needs. The 305-070 variant specifically addresses higher-density connection requirements while maintaining the series' established mechanical and electrical performance standards.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part number 305-070-556-568 for alternative specifications within the same series. Verify dimensional and electrical compatibility before substitution.
