305-074-521-201

Edgeboard Connectors Overview

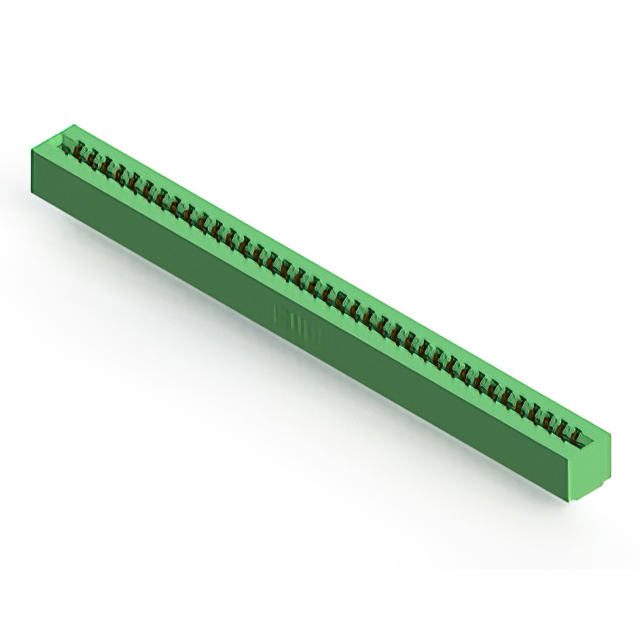

The EDAC Inc. 305-074-521-201 is a standard card edge connector from the 305 Series, designed for dual-edge board insertion. It features 74 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Constructed with copper alloy contacts gold-plated for conductivity, it utilizes a thermoplastic polyester insulator body. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Low-profile insulator body constructed from thermoplastic polyester
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount orientation for standardized integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, plating specifications, and mounting style. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the vertical panel mount configuration aligns with the mechanical assembly requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection is required for a 74-position interface. The 3.96 mm pitch suits applications needing wider spacing between traces. Verify that the operating environment stays within the -40°C to +105°C range. Consider the thermoplastic polyester housing for general-purpose insulation needs in standard industrial environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series of standard card edge connectors. The series offers various position counts and configurations for dual-edge applications. The 305-074-521-201 specifically provides a high-density solution with 74 contacts, balancing connectivity needs with standard mechanical dimensions for widespread industry adoption.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference list for direct substitutes. Verify that any alternative maintains the 74-position count, 3.96 mm pitch, and dual-edge female configuration. Ensure mechanical footprint and electrical ratings match the original design requirements.
