307-016-447-102

Edgeboard Connectors Overview

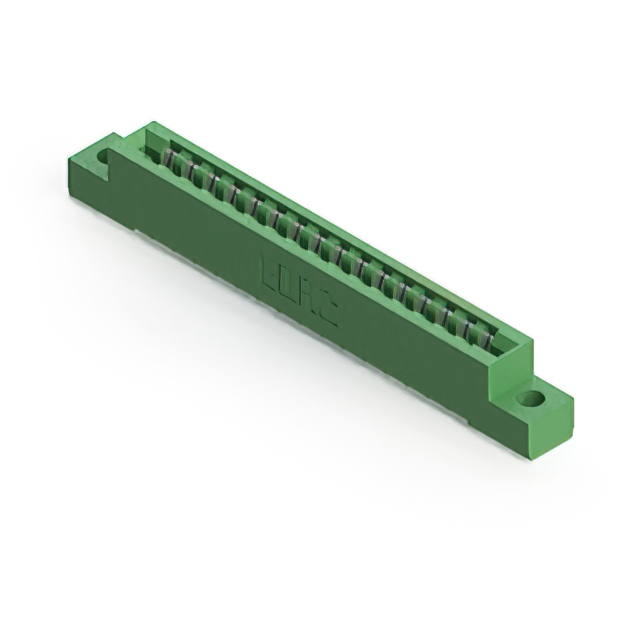

The EDAC Inc. 307-016-447-102 is a standard card edge connector from the 307 series, designed for panel mount applications with a right-angle orientation. It features 16 positions arranged in a single row with a 3.96 mm (0.156 inch) pitch. The connector utilizes tin-plated copper alloy contacts and a green thermoplastic housing. It supports wire wrap termination and accommodates board thicknesses of 1.57 mm. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 16 positions for standardized interconnection
• Right-angle panel mount design for space-efficient installation
• Wire wrap termination method ensuring secure contact integrity
• Thermoplastic housing providing thermal stability up to 105°C

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring card edge interfaces
• Industrial control systems utilizing standardized backplane connections
• Test and measurement equipment needing reliable signal routing

Edgeboard Connectors Procurement Notes

Verify the specific plating finish and termination style against project requirements, as the 307 series includes variants with gold or tin finishes and solder pin options. Confirm that the right-angle panel mount orientation aligns with the mechanical enclosure design. Ensure the 1.57 mm board thickness compatibility matches the target PCB specifications before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle card edge connector is required for panel mounting. The 3.96 mm pitch and 16-position count define the electrical interface density. Consider the wire wrap termination if through-hole soldering is not preferred. Compare against other 307 series parts if dual-row or vertical mounting configurations are needed instead.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 series of standard card edge connectors, which offers various position counts and mounting styles. The series is characterized by its robust thermoplastic construction and consistent 3.96 mm pitch. The 307-016-447-102 specifically addresses needs for single-sided card connections with right-angle accessibility in panel-based architectures.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 307 series numbers for identical pitch but different row counts or orientations. Verify compatibility with mating cards having matching 3.96 mm spacing. Check alternative terminations like solder pins if wire wrap tools are unavailable.
