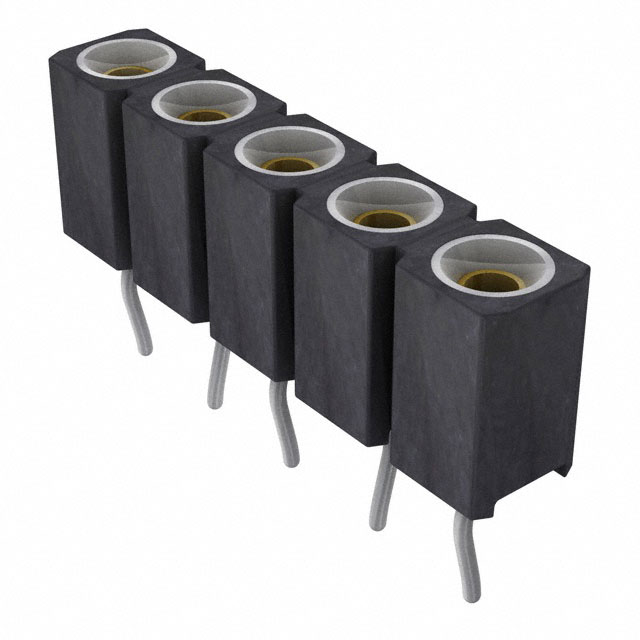

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk

SKU:9fca510dcf28 Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

310-87-105-01-754101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 5POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-87-105-01-754101

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：5
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Press-Fit, Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.165" (4.20mm)
Contact Length - Post：0.122" (3.10mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 310-87-105-01-754101

310-87-105-01-754101

Headers, Receptacles, Female Sockets Overview

Preci-Dip part number 310-87-105-01-754101 is a 5-position socket connector from the 310 series. It features a 2.54 mm (0.100 inch) mating pitch and utilizes through-hole termination for PCB mounting. The contacts are female sockets with gold plating, while the posts are tin-plated. Rated for 3A current and 150V DC voltage, it operates within a temperature range of -55°C to 125°C. The housing is black, flame-retardant UL94 V-0 glass-filled polyester, measuring 4.20 mm in height.

Headers, Receptacles, Female Sockets Feature Summary

Female socket contact configuration designed for board-to-board interconnection
Gold-plated mating surfaces ensure reliable signal transmission
Through-hole termination facilitates secure PCB installation

Headers, Receptacles, Female Sockets Applications

Electronic module interconnections
Industrial control system circuit boards
Consumer electronics internal wiring

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to confirm plating thickness and material composition. Ensure compatibility with mating header dimensions and verify that the required current rating aligns with the application's electrical load requirements before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a vertical, low-profile socket is required for dense PCB layouts. The 2.54 mm pitch suits standard digital logic interfaces. Consider the 3A rating for power distribution lines and ensure the operating environment stays within the specified thermal limits.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to Preci-Dip’s 310 series of rectangular socket connectors. The series offers various pin counts and configurations, providing standardized solutions for general-purpose electronic interconnects. The design emphasizes mechanical stability and consistent electrical performance across diverse industrial applications.
