337-007-544-603

Edgeboard Connectors Overview

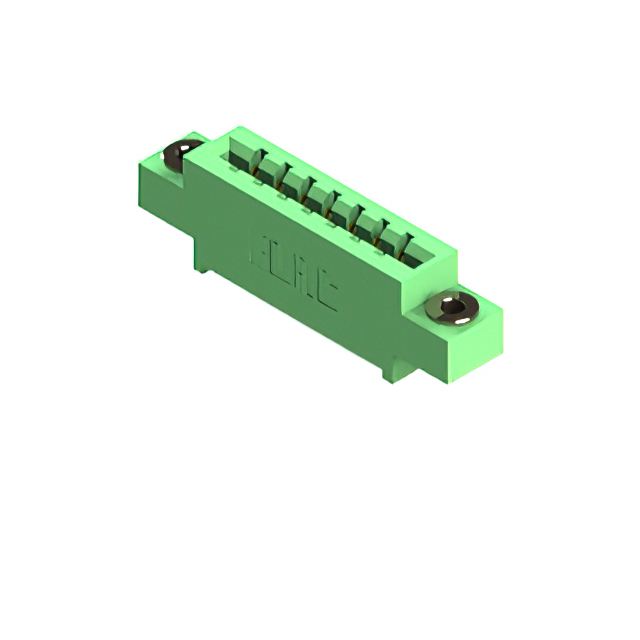

The EDAC Inc. model 337-007-544-603 is a standard card edge connector from the 337 series, designed for single-edge board applications. It features 7 positions with a 3.96 mm (0.156 inch) pitch and accepts PCB thicknesses ranging from 1.37 mm to 1.78 mm. The connector utilizes female contacts made of copper alloy with gold plating, rated for 3 A current. It employs a wire wrap termination method and is constructed with a thermoplastic polyester housing. The unit supports vertical through-hole mounting and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability
• Wire wrap termination facilitates secure circuit board attachment

Edgeboard Connectors Applications

• Vertical through-hole mounting on electronic assemblies
• Interfacing single-edge printed circuit boards in industrial systems
• Signal routing in equipment requiring 3 A current capacity

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and flange configurations. Ensure compatibility with target PCB thickness limits before integration. Confirm RoHS compliance status via the manufacturer's latest datasheet. Cross-reference the part number with authorized distributors to validate supply chain authenticity and avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection is required for vertical panel or board mounting. The 3.96 mm pitch suits standard density layouts. Verify that the wire wrap termination aligns with the assembly process capabilities. Ensure the operating temperature range meets the environmental requirements of the final application.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination options. The 337-007 variant specifically addresses low-pin-count single-edge applications. It shares common material specifications with other models in the family but differs in pin count and physical dimensions.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support for direct equivalents or cross-reference compatible parts based on identical pitch, termination, and form factor requirements.
