337-013-542-103

Edgeboard Connectors Overview

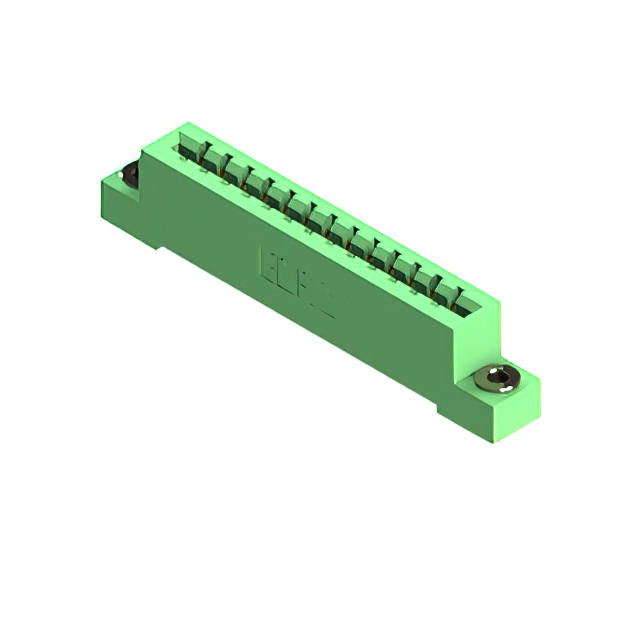

The EDAC Inc. 337-013-542-103 is a standard card edge connector socket designed for single-edge printed circuit boards. It features 13 positions with a 3.96 mm (0.156 inch) pitch. The component utilizes copper alloy contacts with gold plating and is housed in a green thermoplastic polyester insulator. It supports through-hole mounting at a vertical angle, accommodating board thicknesses between 1.37 mm and 1.78 mm. The connector is rated for 3 A current and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for non-specified single-edge cards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides structural stability and insulation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device internal circuit connections
• Agricultural technology equipment modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and mounting orientation. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Ensure the selected variant matches the required PCB thickness and panel mount constraints.

Edgeboard Connectors Selection Notes

Select this model when a vertical, single-row connection is required for thin profile circuit boards. Verify that the target PCB thickness falls within the specified 1.37 mm to 1.78 mm range. Consider the 3.96 mm pitch for spacing requirements and ensure the through-hole termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This component belongs to the EDAC 337 series, which offers a comprehensive range of card edge connectors. The series includes various position counts and mounting styles to support diverse electronic integration needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 337-012-520-104 or 337-014-542-201 for alternative position counts within the same series. Verify mechanical compatibility and electrical ratings before substitution.
