391-014-522-101

Edgeboard Connectors Overview

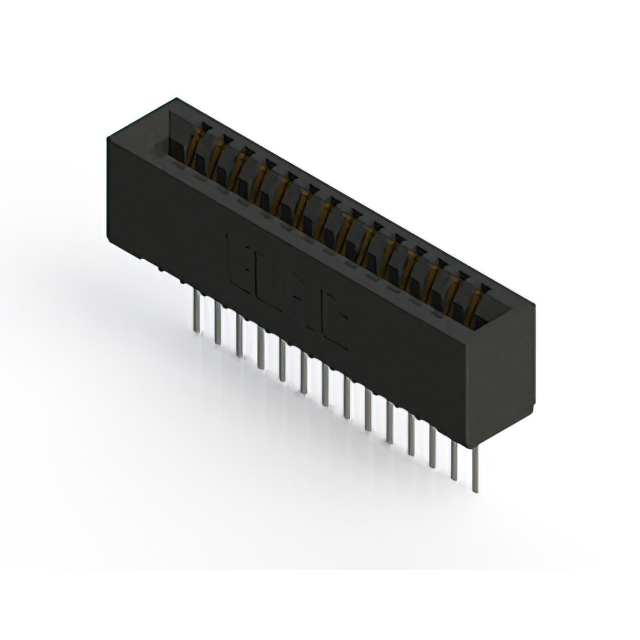

The EDAC Inc. 391-014-522-101 is a standard card edge connector from the 391 series, designed for vertical through-hole mounting. It features 14 positions with a single row of contacts and a 0.100" (2.54mm) pitch. The connector accepts printed circuit boards with a nominal thickness of 0.140" (3.56mm). Contacts are gold-plated copper alloy, providing reliable signal transmission. The insulator body is black thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Vertical through-hole termination for secure PCB integration
• Gold-plated contacts ensure corrosion resistance and conductivity
• Single-row design accommodates standard 0.140" thick cards

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Consumer electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current catalog to confirm contact plating thickness and flange configuration. Ensure the target PCB thickness matches the 0.140" specification. Confirm that the vertical mounting style aligns with the assembly orientation requirements before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical interface is required for 0.140" thick edgeboards. The 0.100" pitch suits general-purpose digital signals. Consider the 391 series if low-profile insulation and standard through-hole reliability are prioritized over high-density or surface-mount alternatives.

Edgeboard Connectors Part Context

This part belongs to the EDAC 391 series, which offers various configurations including double-sided options and different board thicknesses. The 391 series is widely used in modular electronic designs requiring robust mechanical retention and consistent electrical performance across industrial temperature ranges.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 391 series variants with matching 14-position counts and 0.100" pitch, such as 391-014-522-102, provided the flange and termination details are compatible.
