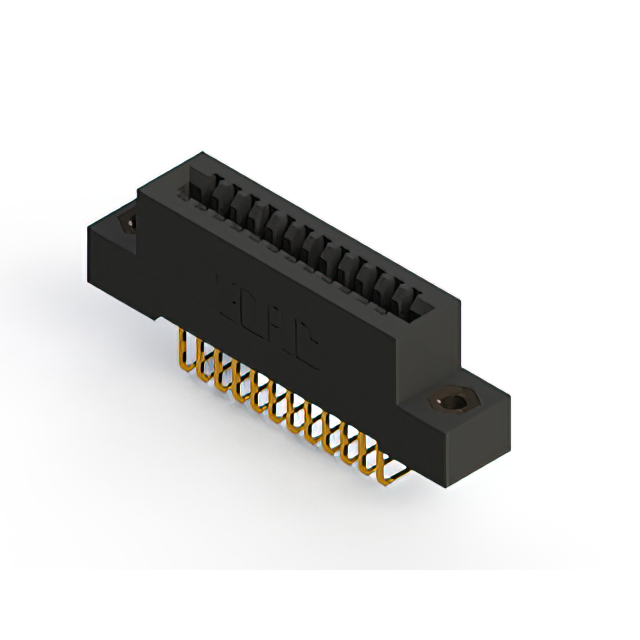

392-012-558-107

$11.59

Description：CONN EDGE SINGLE FML 12POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box

SKU:0b323f2ad3b7 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

392-012-558-107 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 12POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 392-012-558-107

Description：CONN EDGE SINGLE FML 12POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：12
Number of Positions：12
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder, Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 392-012-558-107

392-012-558-107

Edgeboard Connectors Overview

The EDAC Inc. model 392-012-558-107 is a standard card edge connector from the 392 Series, designed for single-edge board insertion. It features 12 positions with a 2.54 mm (0.100 inch) contact spacing and supports PCB thicknesses of 1.37 mm to 1.78 mm. The connector utilizes gold-plated copper alloy contacts and a black thermoplastic polyester insulator. Rated for 3 A current and offering 5 GOhms insulation resistance, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Gold-plated copper alloy contacts ensure reliable electrical conductivity and corrosion resistance.
Thermoplastic polyester housing provides structural stability and high insulation resistance.
Single-row configuration facilitates straightforward vertical panel or through-hole mounting.

Edgeboard Connectors Applications

Industrial control system interface connections
Telecommunications equipment backplane linking
Consumer electronics module integration

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and mounting style variations. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference manufacturer part numbers directly to avoid substitution errors with similar series components.

Edgeboard Connectors Selection Notes

Select this component when a single-edge connection with twelve signal paths is required. Confirm that the mating card thickness falls within the specified mechanical tolerance range. Evaluate thermal requirements against the maximum operating temperature limit to ensure long-term reliability in the intended environment.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 392 Series, which offers various position counts and mounting configurations. The series is characterized by robust construction suitable for demanding environments. This specific variant focuses on mid-range density applications requiring stable performance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may lack precise dimensional tolerances or material specifications required for secure mating.
