Edgeboard Connectors Overview

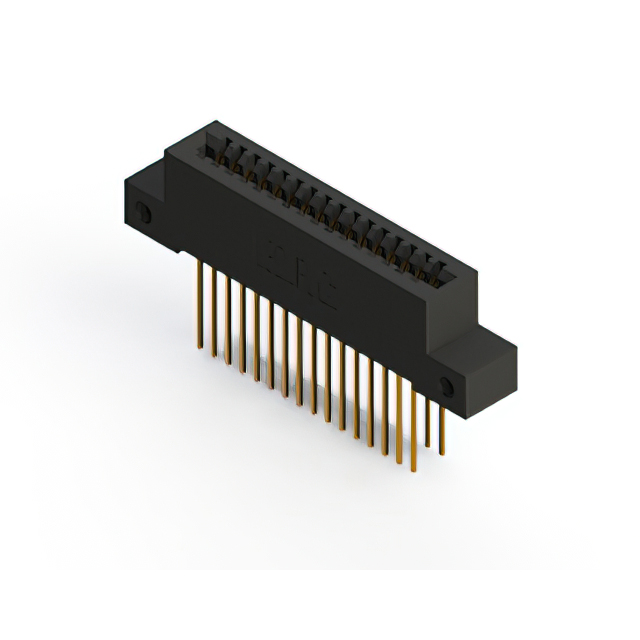

The EDAC Inc. 392-032-541-212 is a card edge connector from the 392 series, designed for edgeboard applications. It features 32 contacts arranged in a single row with a 0.100-inch (2.54mm) pitch. The connector utilizes female terminals with wire wrap termination methods and a black thermoplastic polyester insulator. It supports board thicknesses ranging from 0.054 to 0.070 inches and includes side mounting holes with a 0.128-inch diameter for secure installation.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for standard card edge interfaces
• Wire wrap terminal design for reliable signal transmission
• Thermoplastic polyester insulator construction for durability
• Side mounting holes facilitate secure panel or chassis attachment

Edgeboard Connectors Applications

• Edgeboard interconnect systems
• Industrial control modules
• Communication equipment backplanes
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required termination styles and mounting configurations. Confirm that the selected variant matches the intended board thickness and pitch specifications. Cross-reference part numbers with official EDAC documentation to avoid substitutions that may differ in electrical or mechanical characteristics. Ensure sourcing channels provide genuine components with traceable manufacturing records.

Edgeboard Connectors Selection Notes

Select this component when a single-row, wire-wrap terminated card edge connector is required. The 0.100-inch pitch accommodates standard PCB layouts. Verify that the application environment does not exceed the material temperature ratings. Consider the physical dimensions of the side mounting holes to ensure adequate clearance within the assembly housing. Evaluate contact count requirements against the 32-position capacity.

Edgeboard Connectors Part Context

This component belongs to the EDAC 392 series of edgeboard connectors, which are engineered for robust performance in demanding electronic assemblies. The series offers various contact counts and termination options to suit different interface needs. The 392-032-541-212 specifically addresses applications requiring a moderate number of connections with a single-row layout. Its design emphasizes mechanical stability and electrical reliability through its wire wrap terminals and sturdy insulator material.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers: None identified.
