Edgeboard Connectors Overview

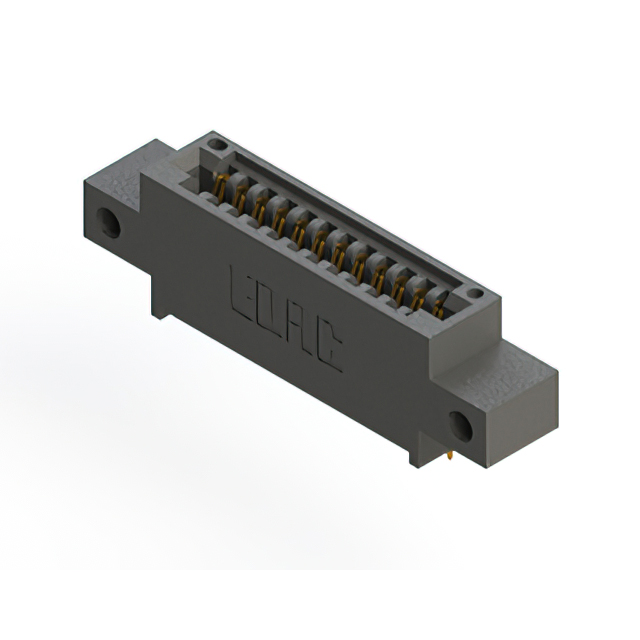

The EDAC Inc. 395-012-524-612 is a single-row female card edge connector featuring 12 positions with a 0.100 inch (2.54mm) contact pitch. Designed for vertical panel mounting, it utilizes gold-plated contacts and a black thermoplastic polyester insulator. The component supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge female configuration for non-specified card applications
• Gold-plated contacts ensure reliable signal transmission
• Vertical panel mount design with thermoplastic polyester housing

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge connections
• Communication equipment interface modules
• Medical device internal circuit board interconnects

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB thickness limits before procurement. Cross-reference the manufacturer part number with authorized distributors to confirm current availability status and lead times.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 12-position female connector is required for vertical panel mounting. Confirm that the application environment falls within the specified operating temperature range. Verify that the mating card thickness aligns with the connector's acceptance range for proper mechanical engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations designed for general-purpose electronic interconnections. It provides a standardized solution for connecting printed circuit boards in modular system architectures.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match critical dimensions or electrical ratings. Validate mechanical fit and electrical performance before adopting any substitute components.
