395-023-542-107

Edgeboard Connectors Overview

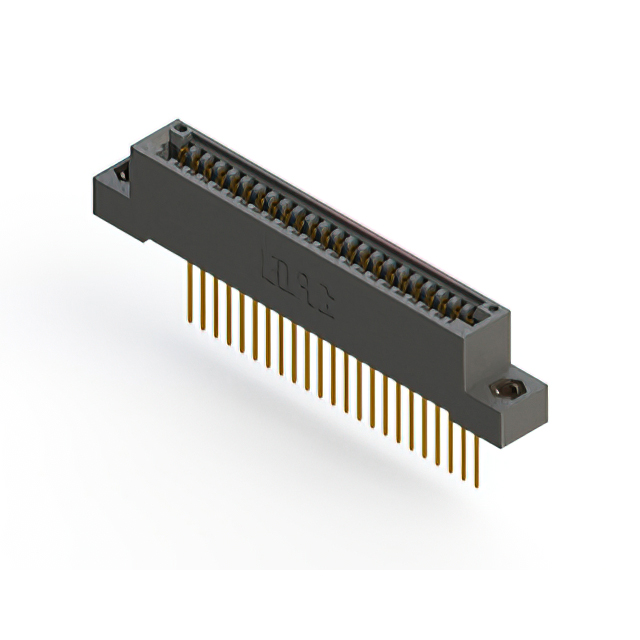

The EDAC Inc. model 395-023-542-107 is a standard card edge connector featuring a 23-position configuration with a 2.54 mm (0.100 inch) pitch. It utilizes a single row of contacts designed for vertical panel mount installation. The component employs solder pin termination and gold-plated copper alloy contacts to ensure reliable signal transmission. It accommodates printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The housing is constructed from thermoplastic polyester, providing stability within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure board integration
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester insulation for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific contact termination style and mounting hardware requirements against the official datasheet before procurement. Confirm that the target application environment remains within the specified thermal limits. Ensure compatibility with the designated PCB thickness to maintain proper mechanical engagement. Cross-reference the manufacturer part number to avoid substitution errors during sourcing.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical interface is required for 23 signals. The 2.54 mm pitch ensures compatibility with standard board layouts. Consider the gold plating for environments requiring long-term reliability. Verify that the panel mount style aligns with the enclosure design constraints.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 395 series, which provides various positioning options and termination styles. The series is characterized by its .100 inch contact spacing and robust construction. This specific variant focuses on vertical mounting with solder pins, distinguishing it from right-angle or wire wrap alternatives within the same family.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 23-position count, 2.54 mm pitch, and vertical orientation. Verify that alternative components support the same 1.57 mm board thickness and panel mount configuration. Contact material and plating specifications should be compared to ensure equivalent performance characteristics.
