395-050-556-507

Edgeboard Connectors Overview

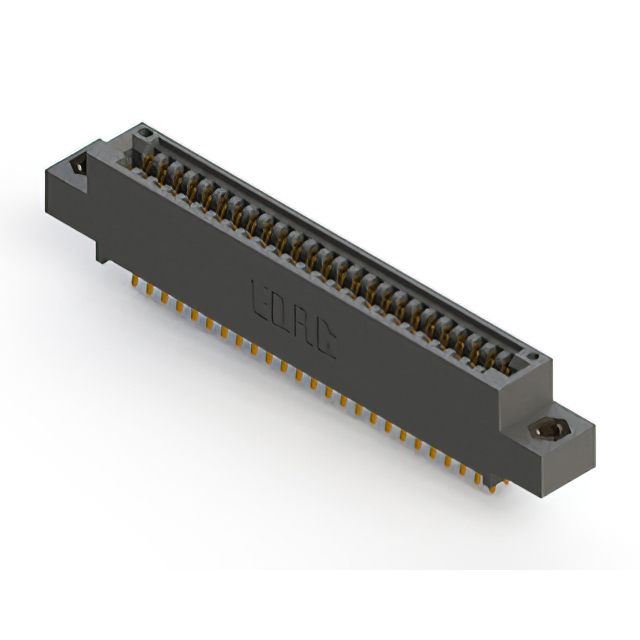

The EDAC Inc. 395-050-556-507 is a standard card edge connector designed for single-row, dual-side contact configurations. It features 50 positions with a 0.100-inch (2.54mm) pitch. The component utilizes a panel mount installation style and employs solder pin termination methods. Contact surfaces are gold-plated over nickel to ensure reliable electrical performance. The housing is constructed from thermoplastic polyester, providing durability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-sided female contacts enable robust connection to card edge PCBs
• Gold plating on contact surfaces ensures corrosion resistance and signal integrity
• Thermoplastic polyester insulation provides structural stability and thermal endurance

Edgeboard Connectors Applications

• Industrial control systems requiring secure board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Automotive electronics modules needing durable interconnect solutions

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination and mounting variations. Ensure compatibility with target PCB thickness and row configuration before procurement. Cross-reference RoHS compliance status with current regulatory requirements for the intended market.

Edgeboard Connectors Selection Notes

Select this model when a dual-sided, single-row interface is required for 50-position applications. Confirm that the panel mount style aligns with the mechanical enclosure design. Validate that the 0.100-inch pitch matches the mating card edge dimensions precisely to avoid alignment issues during assembly.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination options. The 395-050-556-507 specifically addresses needs for high-density, reliable connections in space-constrained electronic assemblies where panel mounting is preferred over surface mount techniques.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify that alternative part numbers maintain identical pitch, position count, and termination type. Ensure mechanical footprint compatibility to prevent rework during replacement.
