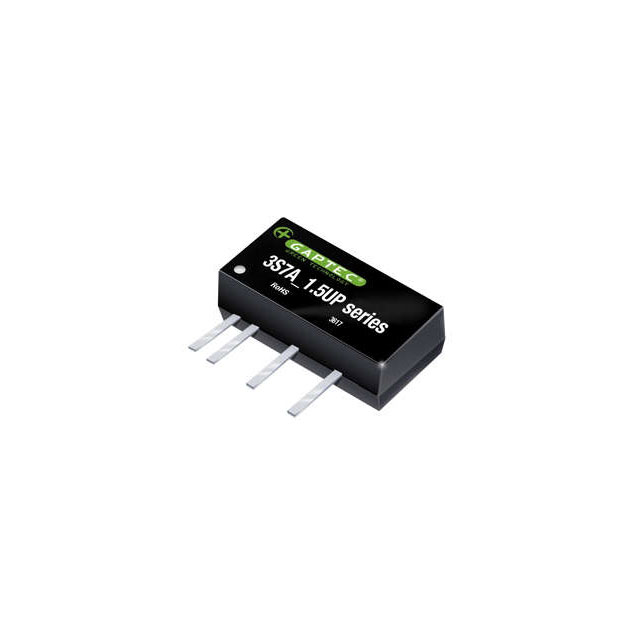

3S7A_0512S1.5UP

3S7A_0512S1.5UP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is ISOLATED MODULE DC DC CONVERTERS. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 3S7A_0512S1.5UP

• Description：ISOLATED MODULE DC DC CONVERTERS
• Series：3S7A_1.5UP (3W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.30" W x 0.39" H (19.5mm x 7.5mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 3S7A_0512S1.5UP
