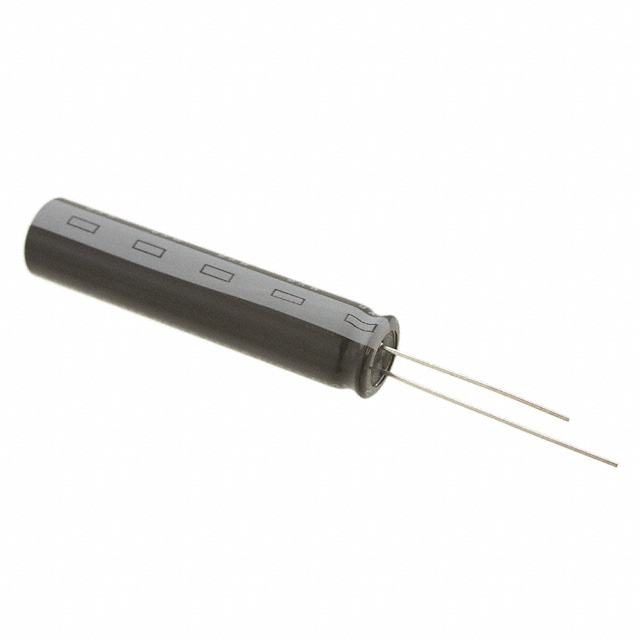

400BXW56MEFC10X45

400BXW56MEFC10X45 is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Rubycon. Its product description is CAP ALUM 56UF 20% 400V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for 400BXW56MEFC10X45

• Description：CAP ALUM 56UF 20% 400V RADIAL TH
• Series：BXW
• Mfr：Rubycon
• Package：Bulk
• Capacitance：56 µF
• Tolerance：±20%
• Voltage - Rated：400 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：12000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：500 mA @ 120 Hz
• Ripple Current @ High Frequency：1.25 A @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：1.850" (47.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for 400BXW56MEFC10X45
