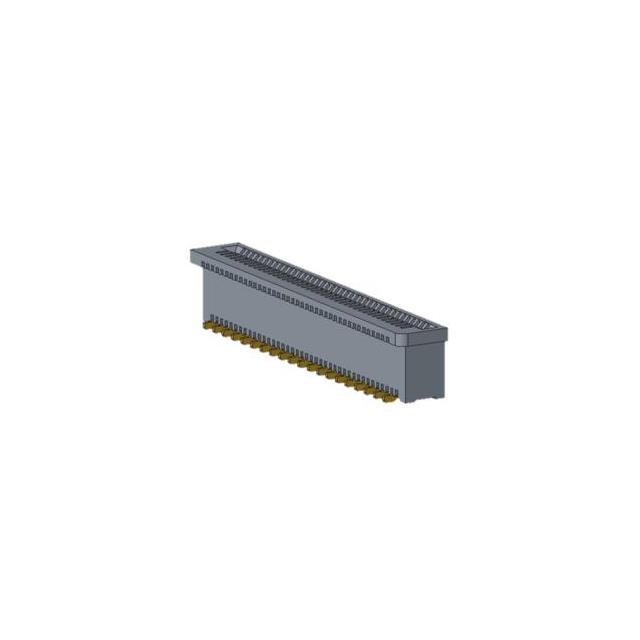

52525-01241-001

52525-01241-001 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Aces Connectors. Its product description is 12P, 0.5MM PITCH NON-ZIF FFC/FPC. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 52525-01241-001

• Description：12P, 0.5MM PITCH NON-ZIF FFC/FPC
• Series：52525
• Mfr：Aces Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：12
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.161" (4.10mm)
• Locking Feature：-
• Cable End Type：Tapered
• Contact Material：Copper Alloy
• Contact Finish：Gold
• Housing Material：Thermoplastic
• Actuator Material：-
• Features：-
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 52525-01241-001
