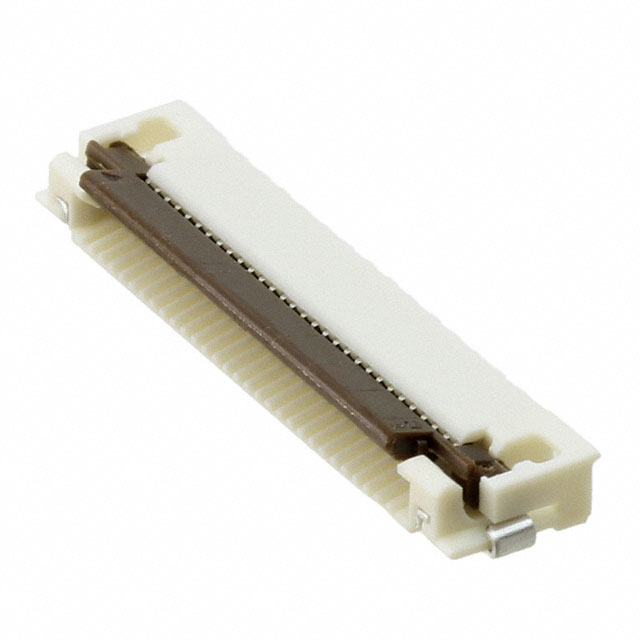

FFC, FPC (Flat Flexible) Connector Assemblies 528923033 product image

528923033

$1.91

Description：CONN FFC BOTTOM 30POS 0.5MM R/A
Series：Easy-On 52892
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a54de0ea33c6 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

528923033 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC BOTTOM 30POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 528923033

Description：CONN FFC BOTTOM 30POS 0.5MM R/A
Series：Easy-On 52892
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：30
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：Flip Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA), Nylon, Glass Filled
Actuator Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 528923033
