5982B00107F

$0.64

Description：SM PLCC-2 WHITE 3MA 7" REEL
Series：598
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:3610e86eaeb6 Category: LED Indication - Discrete Brand: Dialight

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5982B00107F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Dialight. Its product description is SM PLCC-2 WHITE 3MA 7" REEL. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5982B00107F

Description：SM PLCC-2 WHITE 3MA 7" REEL
Series：598
Mfr：Dialight
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Independent
Lens Color：-
Lens Transparency：-
Millicandela Rating：37mcd
Lens Style：Round with Flat Top
Lens Size：2.50mm Dia
Voltage - Forward (Vf) (Typ)：2.7V
Current - Test：3mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：1.96mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5982B00107F

5982B00107F

LED Indication - Discrete Overview

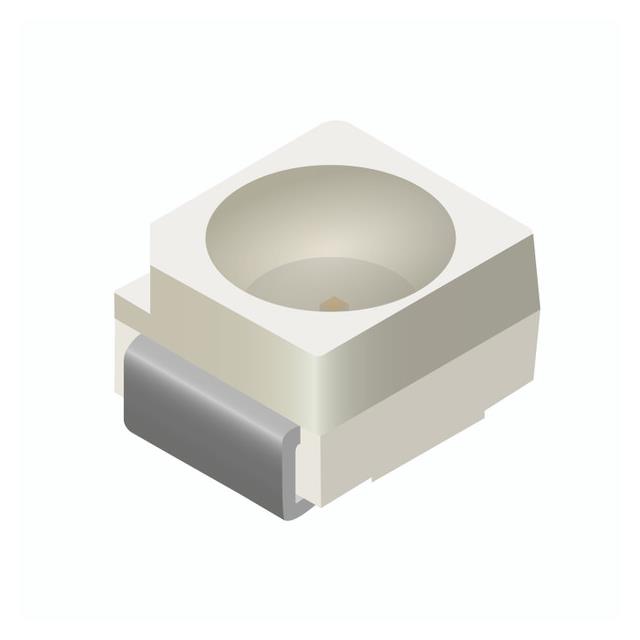

The Dialight 598-2B00-107F is a surface-mount white LED component from the 598 series. It utilizes a PLCC-2 package configuration with a rectangular lens design. The device operates at a forward current of 3mA and emits white light. It is supplied in reel packaging for automated assembly processes.

LED Indication - Discrete Feature Summary

White light emission capability
Surface-mount PLCC-2 package format
Low current operation at 3mA

LED Indication - Discrete Applications

General indicator lighting
Status indication on electronic boards
Low-power visual signaling

LED Indication - Discrete Procurement Notes

Verify availability status as distribution channels may indicate restricted supply or discontinuation. Confirm RoHS compliance details through official documentation before integration. Ensure reel specifications match automated placement equipment requirements. Validate part number accuracy against manufacturer databases to prevent sourcing errors.

LED Indication - Discrete Selection Notes

Select this component for applications requiring low-current white illumination in compact spaces. The PLCC-2 form factor supports standard surface-mount reflow processes. Consider thermal management and forward voltage characteristics during circuit design. Verify compatibility with existing board layouts and soldering profiles.

LED Indication - Discrete Part Context

This component belongs to the Dialight 598 series of single-color LEDs. The series offers various color options in standardized surface-mount packages. The 598-2B00-107F specifically provides white light output optimized for indicator applications.
