5988320117F

Overview

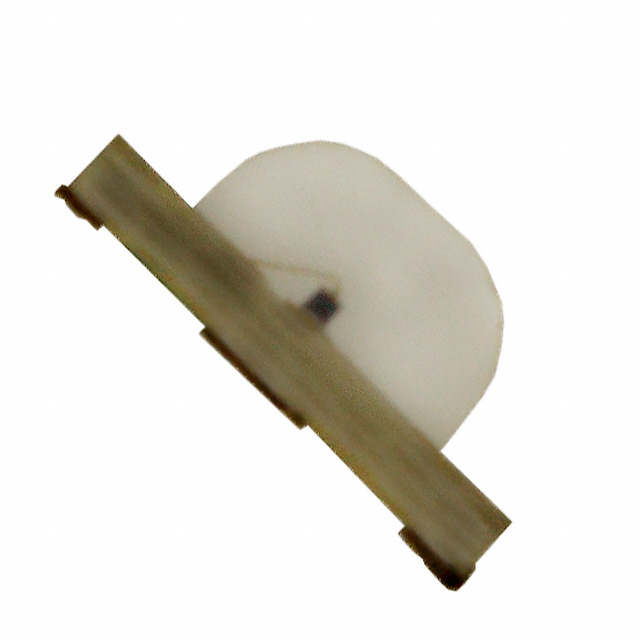

Dialight 5988320117F is a red surface-mount LED indicator from the 598 series. It features a clear lens with a rectangular, domed style and emits light at a peak wavelength of 625nm. The component operates with a typical forward voltage of 2V and a test current of 20mA. It provides an intensity of 120mcd with a wide viewing angle of 160 degrees. The package is a 2-SMD, leadless type (1208 metric) measuring 3.20mm in length, 1.50mm in width, and 1.00mm in maximum height. It supports right-angle surface mount installation.

Feature Summary

• Emits red light at a 625nm peak wavelength for high visibility
• Features a clear, rectangular lens with a domed top surface
• Offers a wide 160-degree viewing angle for broad signal indication
• Designed for right-angle surface mount assembly on PCBs

Applications

• Electronic device status indication
• Panel-mounted equipment signaling
• Consumer appliance control interfaces
• Industrial control system monitoring

Procurement Notes

Verify the specific ordering suffix to confirm the exact color and lens configuration, as variations exist within the 598 series. Confirm RoHS compliance status and moisture sensitivity level requirements against your manufacturing process specifications. Check for obsolescence notices or product change notifications that may affect long-term availability. Ensure the selected packaging option matches your automated placement equipment capabilities.

Selection Notes

Select this component when a standard red SMD indicator with a wide viewing angle is required. The 1208 package size suits applications with limited board space constraints. Consider the 2V forward voltage drop for circuit design compatibility. Evaluate the 160-degree beam spread against optical requirements for visibility distance. Compare luminous intensity ratings if higher brightness levels are necessary for the application environment.

Part Context

The 5988320117F belongs to Dialight's 598 series of surface-mount LEDs. This series focuses on compact, reliable indicators for modern electronics manufacturing. The components are designed for high-volume production environments requiring consistent performance. The series offers various color and lens options to meet diverse visual signaling needs across different industries.

Replacement Considerations

The 5988320117F is listed as a parameter-equivalent replacement for the 5988320107F.
