5988C10107F

LED Indication - Discrete Overview

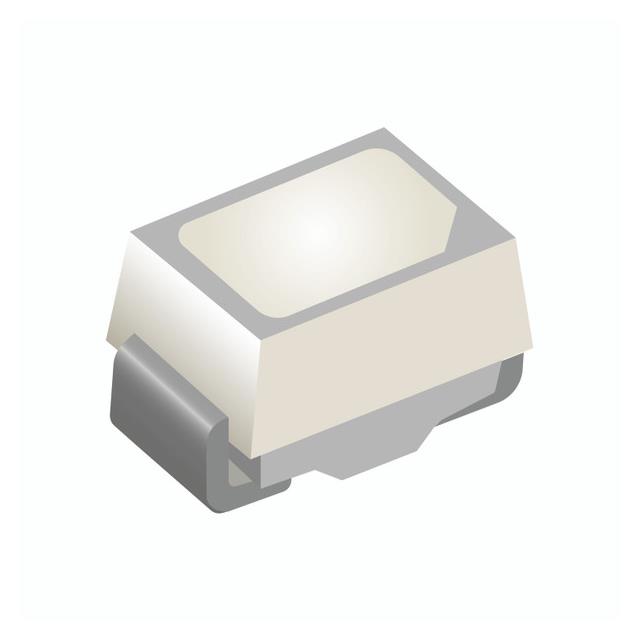

The Dialight 5988C10107F is a surface-mount indicator LED emitting red light at a dominant wavelength of 625nm. It utilizes a 2-MiniPLCC package with dimensions of 2.20mm length, 1.40mm width, and a maximum height of 1.35mm. The component features a rectangular lens with a flat top. Typical forward voltage is 1.8V, with a luminous intensity of 405mcd measured at a test current of 5mA. It complies with RoHS3 standards and has a Moisture Sensitivity Level (MSL) rating of 3.

LED Indication - Discrete Feature Summary

• Compact 2-MiniPLCC surface-mount form factor for space-constrained designs
• Red emission with 625nm dominant wavelength for clear visual indication
• Rectangular lens style with flat top geometry

LED Indication - Discrete Applications

• Panel status indicators
• Power supply activity signaling
• Electronic device operational feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'F' to confirm lead-free compliance and tape-and-reel packaging configuration. Ensure the ordering part number matches the exact electrical parameters required for the target circuit design. Cross-reference manufacturer documentation for any recent product change notices or manufacturing site transfers that may affect component specifications.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator is required for surface-mount assembly processes. The 2-MiniPLCC package offers a smaller footprint compared to standard PLCC-2 packages. Consider the 1.8V forward voltage drop for appropriate current-limiting resistor calculations in the driving circuit to ensure optimal brightness and longevity.

LED Indication - Discrete Part Context

This part belongs to the Dialight 5988 series of surface-mount LEDs. The series provides various color options within standardized small-footprint packages. The 5988C10107F specifically addresses the need for compact red signaling components in modern electronics where board space is limited and high reliability is required.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with alternative suppliers by matching package dimensions, electrical characteristics, and mounting requirements.
