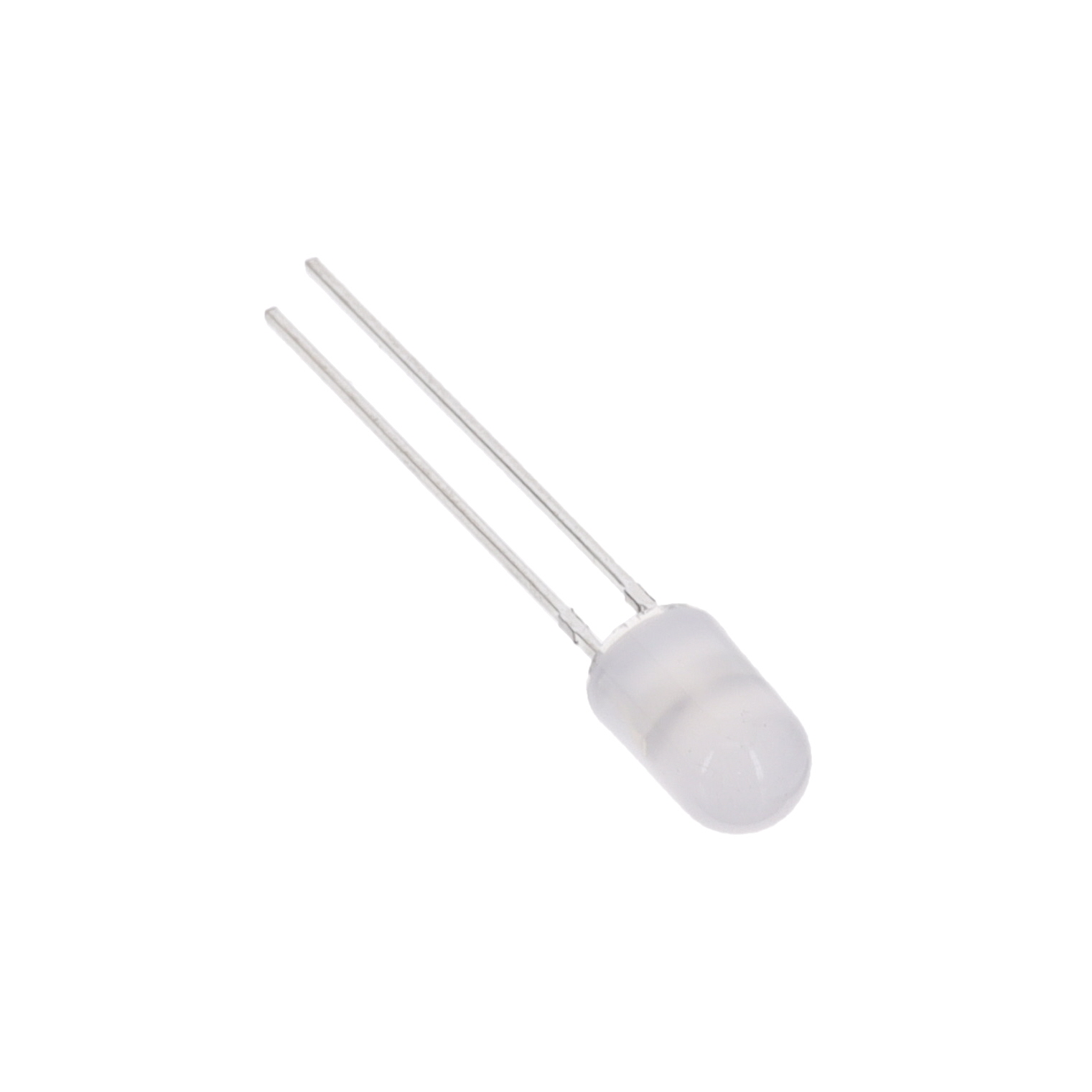

LED Indication - Discrete 5BC product image

5BC

$0.39

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bag

SKU:576b7075b82e Category: LED Indication - Discrete Brand: Bivar Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

5BC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Bivar Inc.. Its product description is LED GRN/RED DIFFUSED T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 5BC

Description：LED GRN/RED DIFFUSED T-1 3/4 T/H
Series：-
Mfr：Bivar Inc.
Package：Bag
Color：Green, Red
Configuration：Bidirectional
Lens Color：White
Lens Transparency：Diffused
Millicandela Rating：14mcd Green, 8mcd Red
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.2V Green, 2V Red
Current - Test：20mA Green, 20mA Red
Viewing Angle：140°
Mounting Type：Through Hole
Wavelength - Dominant：570nm Green, 620nm Red
Wavelength - Peak：565nm Green, 625nm Red
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：8.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 5BC

5BC

LED Indication - Discrete Overview

The Bivar Inc. 5BC is a vertical LED assembly designed for through-hole mounting on printed circuit boards. It features a dual-color configuration with red and green LEDs, emitting at wavelengths of 635 nm and 568 nm respectively. The unit provides an optical intensity of 35 mcd with a viewing angle of 40 degrees. Electrical characteristics include a forward current rating of 20 mA, with forward voltages specified as 2 V for the red element and 2.2 V for the green element. The component utilizes a 5 mm LED size and is packaged in trays.

LED Indication - Discrete Feature Summary

Vertical bi-color LED assembly integrating red and green light sources
Through-hole mounting configuration for standard PCB insertion
Diffused lens design providing a 40-degree viewing angle

LED Indication - Discrete Applications

Status indication on electronic control panels
Power state signaling in consumer electronics
Operational feedback in industrial instrumentation

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and mechanical dimensions. Ensure compatibility with automated placement equipment regarding the tray packaging format. Confirm that the 20 mA forward current rating aligns with the target circuit design constraints before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a vertical form factor is required for space-constrained PCB layouts. The dual-color capability allows for distinct status signaling within a single footprint. Verify that the 5 mm hole spacing matches the target board layout and that the operating voltage range accommodates the specified forward voltage drops.

LED Indication - Discrete Part Context

This part belongs to the Bivar LED circuit board indicator family, specifically designed for direct panel or board illumination. It serves as a compact solution for visual feedback applications where space efficiency and clear color differentiation are prioritized over high-intensity output requirements.
