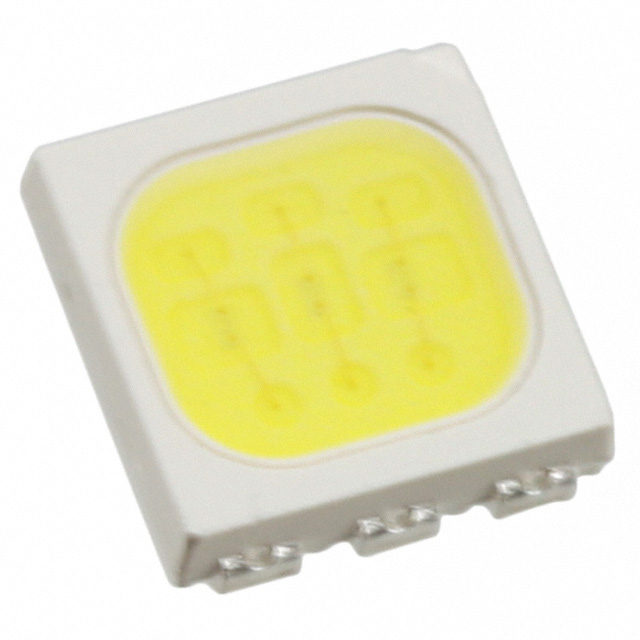

61-238/LK2C-B45568F6GB2/ET

$1.32

Description：LED COOL WHITE DIFF 6PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:70ff1faa766a Category: LED Indication - Discrete Brand: Everlight Electronics Co Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

61-238/LK2C-B45568F6GB2/ET is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Everlight Electronics Co Ltd. Its product description is LED COOL WHITE DIFF 6PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for 61-238/LK2C-B45568F6GB2/ET

Description：LED COOL WHITE DIFF 6PLCC SMD
Series：-
Mfr：Everlight Electronics Co Ltd
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White, Cool
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Diffused
Millicandela Rating：6100mcd
Lens Style：Rectangle with Flat Top
Lens Size：4.36mm x 3.96mm
Voltage - Forward (Vf) (Typ)：3.25V
Current - Test：3 x 20mA
Viewing Angle：120°
Mounting Type：Surface Mount
Wavelength - Dominant：4500K ~ 5650K
Wavelength - Peak：-
Features：-
Package / Case：6-SMD, J-Lead
Supplier Device Package：6-PLCC
Size / Dimension：5.00mm L x 5.00mm W
Height (Max)：1.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for 61-238/LK2C-B45568F6GB2/ET

61-238/LK2C-B45568F6GB2/ET

LED Indication - Discrete Overview

The Everlight 61-238/LK2C-B45568F6GB2/ET is a single-color surface-mount LED emitting cool white light. It features a water-clear lens and a T-1, 3mm round shape with a total height of 1.5 mm. The device utilizes InGaN material and supports infrared reflow soldering. Key electrical parameters include a maximum forward current of 0.03 A and a nominal luminous intensity of 6000 mcd. It operates within a temperature range of -40 °C to 85 °C and contains six individual pins in a lead frame package.

LED Indication - Discrete Feature Summary

Constructed with super-luminosity chip technology for high brightness output
Designed with a wide viewing angle suitable for light guide applications
Compliant with RoHS standards and lead-free manufacturing processes

LED Indication - Discrete Applications

General lighting systems
Decorative and entertainment lighting
Status indicators
Illumination devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix against official Everlight documentation to confirm exact binning and color coordinates. Ensure compatibility with standard IR reflow soldering profiles. Confirm that the selected variant matches the required thermal operating range and pin configuration for the target PCB layout.

LED Indication - Discrete Selection Notes

Select this component for applications requiring high-intensity cool white illumination in compact surface-mount designs. Consider the 6000 mcd intensity and wide viewing angle for effective light guiding. Verify that the 0.03 A maximum forward current aligns with the system's power budget and thermal management capabilities.

LED Indication - Discrete Part Context

This part belongs to the Everlight 61-238 series of white SMT LEDs. The series is characterized by its use of blue LEDs combined with special phosphors to produce white light. These components are engineered for low power consumption and are commonly utilized in consumer electronics and lighting fixtures where space constraints are critical.
