802-80-070-65-001101

Headers, Male Pins Overview

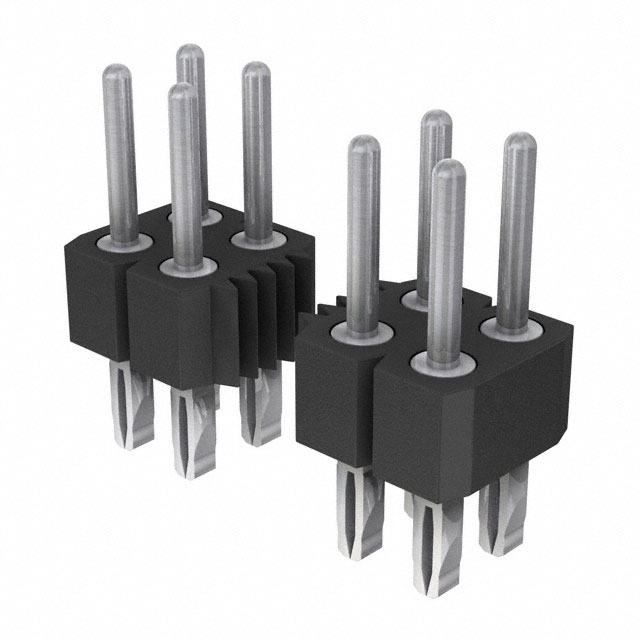

Preci-Dip part number 802-80-070-65-001101 is a male header connector from the 802 series. It features a 2.54 mm pitch and 70 positions arranged in two rows. The connector utilizes a vertical orientation with through-hole termination for soldering. Constructed with brass contacts and a PCT polyester insulator, it supports a rated current of 3A and a voltage of 150VDC. The operating temperature range spans from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Vertical board-to-board interconnection design
• Tin-plated brass contact system
• Flame-retardant PCT insulation material

Headers, Male Pins Applications

• General electronic circuit board connections
• Industrial control module interfaces
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to confirm exact pin count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and row configuration. Confirm that the vertical mounting style aligns with the target PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a high-density, low-profile vertical connection is required. The 2.54 mm pitch offers standard spacing for general applications. Consider the 3A current rating and 150VDC voltage limit to ensure safe operation within the specified thermal environment. Verify mechanical fit for the intended enclosure space.

Headers, Male Pins Part Context

This component belongs to the Preci-Dip 802 series, which provides versatile header solutions for various electronic assemblies. The series is characterized by its reliable through-hole mounting and standardized dimensions. This specific variant represents a dual-row configuration suitable for applications requiring multiple signal or power lines in a compact footprint.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 802 series headers with matching 70-position counts and vertical orientations. Ensure any replacement maintains the 2.54 mm pitch and identical electrical ratings. Verify that the insulating material and contact plating meet the original performance standards.
