807-010-505-104

Edgeboard Connectors Overview

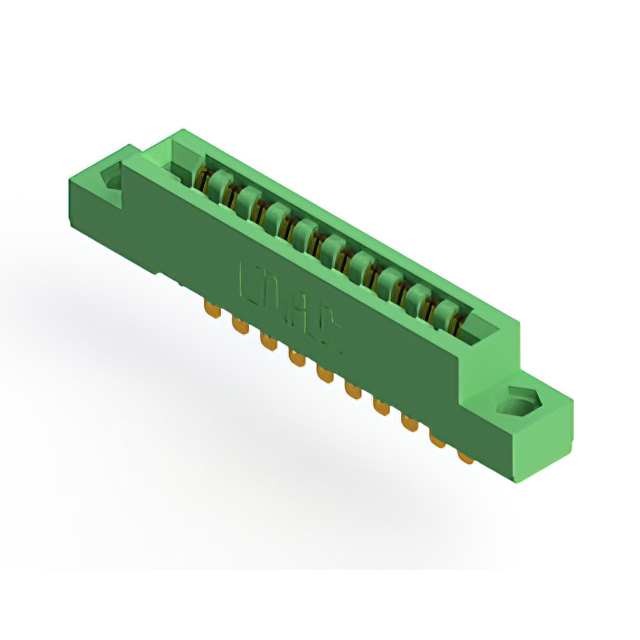

The EDAC Inc. model 807-010-505-104 is a standard single-row card edge connector receptacle designed for high-temperature environments. It features 10 positions with a 3.96 mm (0.156 inch) pitch and supports board thicknesses between 1.37 mm and 1.78 mm. The unit utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) insulator, rated for 5 A current and operating from -40°C to +125°C. It employs panel mount installation with a vertical orientation and wire hole termination.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using Diallyl Phthalate (DAP) insulation
• Gold-plated copper alloy contacts for reliable signal transmission
• Vertical panel mount design with wire hole termination style

Edgeboard Connectors Applications

• Medical interconnect solutions requiring thermal stability
• Agricultural technology equipment connectors
• Industrial control panel interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm exact contact tail length and bend specifications. Ensure the selected variant matches the required PCB thickness range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status directly with the supplier documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 10-position interface with a 3.96 mm pitch is required. Choose this model over other series if operation within a -40°C to +125°C temperature range is mandatory. Verify that the vertical panel mount configuration aligns with the mechanical enclosure constraints and that wire hole termination is compatible with the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807 High Temp Series, which specializes in durable connectors for harsh environments. The series offers various position counts and row configurations while maintaining consistent 3.96 mm spacing. The 807-010-505-104 represents the single-row, 10-position variant within this robust product family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 807 Series Ordering Guide for direct substitutes with identical electrical ratings but different mechanical tail lengths or mounting variations.
