892-70-008-20-001101

Headers, Male Pins Overview

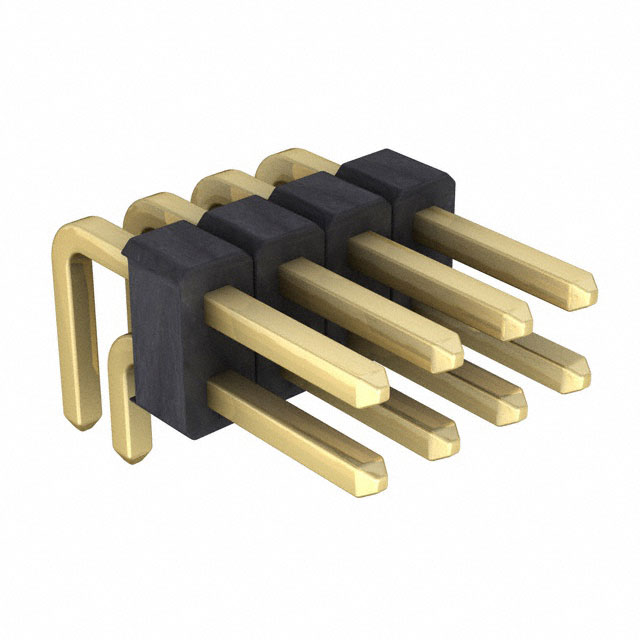

The Preci-Dip 892-70-008-20-001101 is a right-angle, double-row header connector with eight positions and a 2.54 mm (0.100 inch) pitch. It features square pins made of brass with flash gold plating on both the mating and tail sections. The connector utilizes a polyamide (PA), glass-reinforced nylon insulation rated UL94 V-0 in black. Designed for board-to-board applications, it supports through-hole solder termination and push-pull fastening. Electrical ratings include 3A current capacity and 150VDC voltage, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle double-row configuration with square pin geometry
• Flash gold plating on brass contacts for corrosion resistance
• Polyamide glass-reinforced nylon insulation with UL94 V-0 rating

Headers, Male Pins Applications

• Board-to-board interconnections
• General electronic circuit assembly
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Preci-Dip documentation to confirm compatibility. Ensure that the flash gold plating specification matches the application requirements. Check environmental certifications such as RoHS compliance if required by the project standards. Confirm mechanical dimensions and thermal ratings before integration into the design.

Headers, Male Pins Selection Notes

Select this component when a right-angle, double-row header with square pins is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the flash gold plating for environments requiring enhanced contact reliability. Verify that the through-hole mounting style fits the PCB layout constraints.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 892 series, which specializes in right-angle headers. The series offers various pin counts and configurations. The 892-70 variant specifically denotes the double-row right-angle style. This family provides standardized solutions for compact electronic assemblies requiring reliable board-to-board connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 892-series headers with matching pitch and row count. Verify that replacement parts maintain the same square pin shape and flash gold plating specifications. Ensure the insulation material and flammability rating meet the original design requirements.
