Edgeboard Connectors Overview

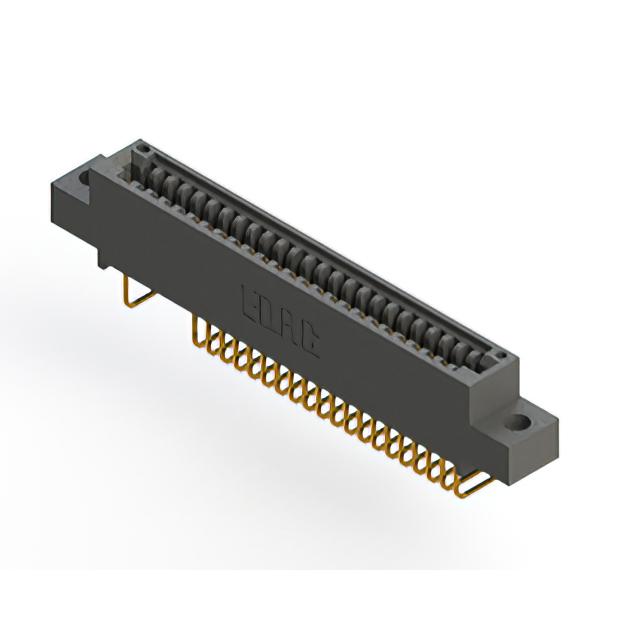

The EDAC Inc. 895-025-558-404 is a standard card edge connector receptacle featuring a single row with 25 positions and a 2.54 mm (0.100 inch) pitch. It utilizes gold-plated copper alloy contacts rated for 3 A current and offers an insulation resistance of 5 GOhms. Designed for panel mount installation at a right angle, the housing is constructed from black Polyphenylene Sulfide (PPS). The component supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance.
• Polyphenylene Sulfide (PPS) housing provides high thermal stability and mechanical strength.
• Right-angle panel mount design facilitates efficient space utilization in enclosed assemblies.

Edgeboard Connectors Applications

• Industrial control system interconnections
• Medical device circuit board interfaces
• Agricultural technology equipment connections

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compliance with required electrical ratings and environmental specifications. Ensure that the selected variant matches the intended mounting style and contact configuration for the target application. Cross-reference datasheet details regarding material composition and termination type to guarantee compatibility with assembly processes.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle card edge interface is required for robust industrial or medical applications. Consider the 2.54 mm pitch and 1.57 mm PCB thickness compatibility during layout design. Evaluate the PPS housing properties for environments requiring high thermal resistance and durable mechanical performance under operational stress.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors, designed for high-reliability interconnect solutions. The series supports various position counts and mounting configurations to accommodate diverse electronic assembly needs across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the same series or compatible families. Ensure any replacement maintains identical pitch, position count, and mounting characteristics.
