895-046-525-603

Edgeboard Connectors Overview

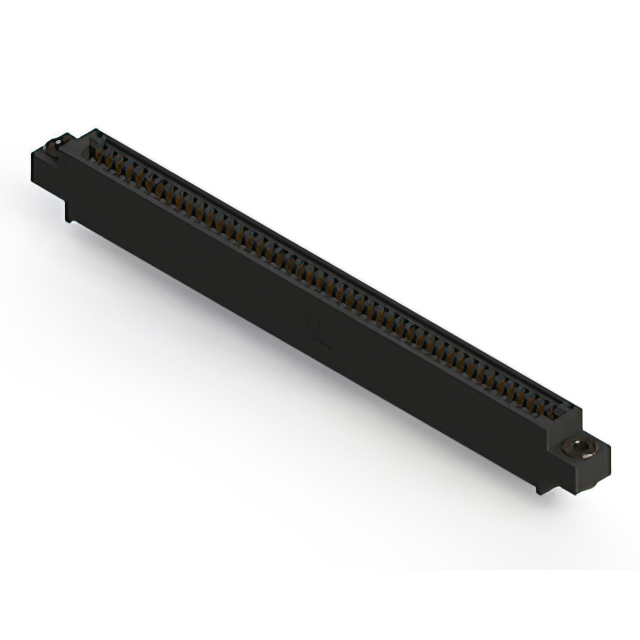

The EDAC Inc. 895-046-525-603 is a card edge connector from the 895 series, designed for non-specified single-edge boards. It features 46 positions with a 0.100 inch (2.54 mm) pitch and utilizes female contacts. The connector employs a through-hole termination method and includes a black polyphenylene sulfide insulator. Gold plating is applied to the copper alloy contacts to ensure reliable signal transmission.

Edgeboard Connectors Feature Summary

• Utilizes cantilever spring contact design for secure board retention
• Constructed with high-temperature resistant polyphenylene sulfide insulation
• Features gold-plated copper alloy contacts for corrosion resistance
• Supports vertical panel mount installation configuration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device circuit boards
• Consumer electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact pin count, plating thickness, and mounting style. Ensure compatibility with the target PCB edge thickness and verify RoHS3 compliance status prior to procurement to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 46-position interface is required for non-specified card edges. Confirm that the 0.100 inch pitch aligns with the PCB layout and that the vertical mounting orientation fits the enclosure constraints. Validate that the operating temperature range meets the application environment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series is characterized by the use of polyphenylene sulfide insulators and gold-plated contacts. It serves as a reliable solution for connecting printed circuit boards in various electronic assemblies where durability and electrical performance are prioritized.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with different position counts or plating options. Cross-reference compatible parts from the broader EDAC portfolio ensuring identical pitch and mounting characteristics.
