9-146254-0-02

Headers, Male Pins Overview

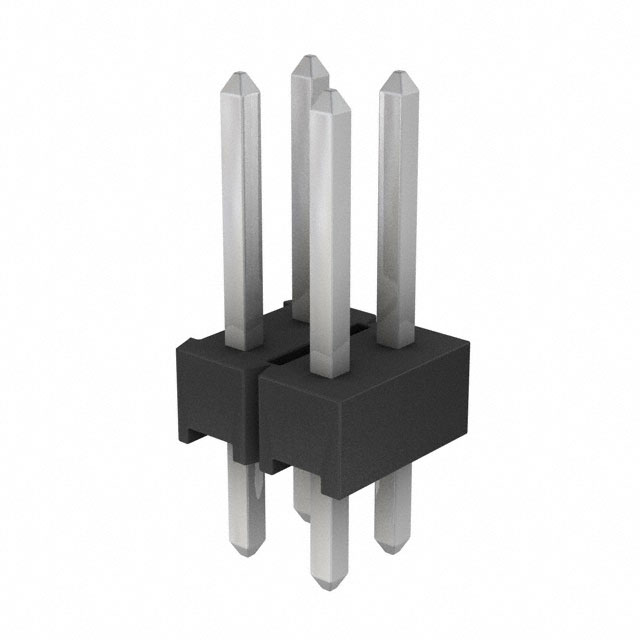

The TE Connectivity AMP Connectors part number 9-146254-0-02 is a vertical breakaway PCB header from the AMPMODU Mod II series. It features a 4-position configuration with a 0.100-inch (2.54mm) pin spacing. The connector utilizes square male pins and is designed for through-hole mounting on printed circuit boards. The housing is constructed from black thermoplastic material rated UL94 V-0 for flammability. This component supports board-to-board or cable applications and operates within a standard temperature range.

Headers, Male Pins Feature Summary

• Vertical breakaway design allows for easy separation of multiple units during assembly
• Square male pin configuration ensures secure mating with compatible receptacles
• UL94 V-0 rated black thermoplastic housing provides flame resistance
• Through-hole termination method ensures stable mechanical connection to PCB

Headers, Male Pins Applications

• General purpose electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics board-to-board connections

Headers, Male Pins Procurement Notes

Verify that the specific suffix -02 corresponds exactly to the 4-position vertical variant when sourcing. Confirm that the AMPMODU Mod II series compatibility requirements are met by the mating receptacle. Ensure that the through-hole footprint matches the specified 2.54mm pitch dimensions for proper PCB layout integration.

Headers, Male Pins Selection Notes

Select this component when a low-cost, high-density vertical header is required for signal-level applications. The breakaway feature facilitates efficient panel processing. Verify that the current rating and voltage specifications align with the circuit requirements. Consider the operating temperature range to ensure reliability in the intended environment.

Headers, Male Pins Part Context

This part belongs to the AMPMODU Mod II family, a widely used line of rectangular connectors known for their versatility and cost-effectiveness. The series offers various position counts and configurations to support diverse connectivity needs. The 9-146254-0-02 specifically addresses applications requiring a compact 4-pin vertical interface solution.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 4-position vertical headers with 2.54mm pitch from the same manufacturer. Ensure that mating receptacles maintain the same pin geometry and housing dimensions for interchangeability.
