929648-04-32-EU

Headers, Male Pins Overview

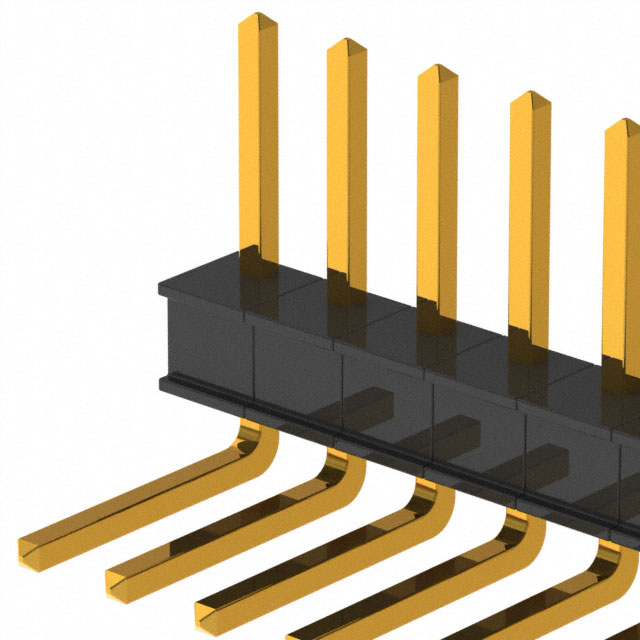

The 3M 929648-04-32-EU is a right-angle pin header from the 929 series, featuring 32 positions with a 2.54mm (0.100 inch) pitch. It utilizes through-hole termination and gold-plated contacts for corrosion resistance. The connector supports board-to-board and wire-to-board applications, offering stackable design flexibility and breakaway functionality for custom lengths.

Headers, Male Pins Feature Summary

• Right-angle PCB mounting configuration
• Gold-plated contact surfaces for enhanced durability
• Stackable design for multi-layer assembly
• Breakaway capability for flexible sizing

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Industrial automation systems
• Data center equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix 'EU' against the manufacturer's current datasheet to confirm regional compliance or material variations. Ensure the required contact plating matches the application environment. Confirm that the right-angle orientation aligns with the mechanical layout constraints of the target printed circuit board assembly.

Headers, Male Pins Selection Notes

Select this component when a fixed 32-position right-angle connection is required. Consider the 929 series breakaway feature if variable pin counts are needed across a production run. Evaluate the gold plating option for environments requiring high corrosion resistance compared to tin alternatives.

Headers, Male Pins Part Context

This part belongs to the 3M 929 series, which provides versatile pin headers for electronic designs. The series offers both single and double row options in horizontal and vertical configurations. These connectors support various plating materials and are designed for use in demanding industrial and data center applications.

Headers, Male Pins Replacement Considerations

Consult the official 3M catalog for direct substitutes within the 929 series. Verify compatibility regarding pin count, pitch, and mounting angle before substitution. No alternative part numbers are confirmed in the provided documentation.
