929667-02-23-I

Headers, Male Pins Overview

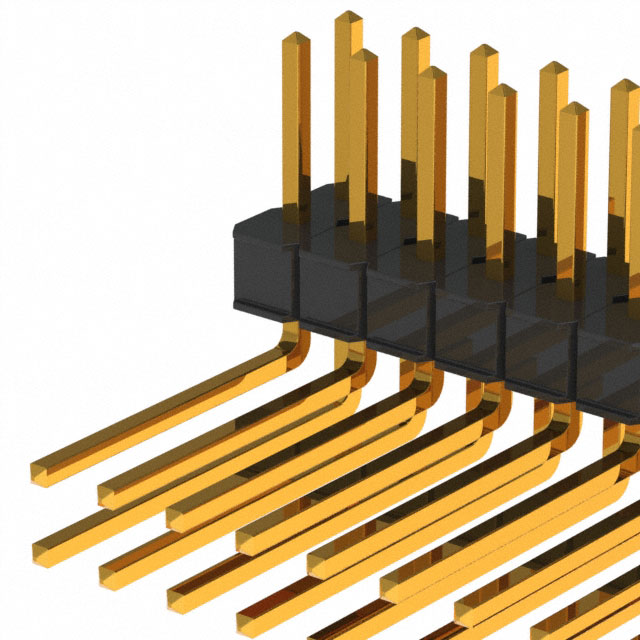

The 3M 929667-02-23-I is a right-angle pin strip header connector from the 929 series, designed for through-hole PCB mounting. It features 46 positions arranged in two rows with a 0.100-inch (2.54mm) pitch. The contacts are gold-plated copper alloy pins with a mating length of 0.235 inches and a post length of 0.405 inches. The insulator is made of PCT material rated UL94 V-0, operating within a temperature range of -40°C to 105°C. Rated at 2.5A, this unshrouded connector supports board-to-board applications.

Headers, Male Pins Feature Summary

• Stackable design expands mechanical flexibility and allows for multi-level assembly configurations
• Solder tail construction reinforces the connection between the pin and the printed circuit board
• Fork contact design ensures consistent contact pressure and maximizes contact area

Headers, Male Pins Applications

• Board-to-board interconnections
• Line-to-board connections
• Prototype and custom design configurations

Headers, Male Pins Procurement Notes

Verify the specific suffix against official documentation, as variations may indicate different plating or packaging options. Confirm that the component meets RoHS compliance requirements if applicable to your manufacturing standards. Ensure the part number matches the exact pin count and row configuration required for your circuit layout. Check for any end-of-life notices or obsolescence warnings associated with this specific revision before finalizing procurement plans.

Headers, Male Pins Selection Notes

Select this connector when a right-angle, double-row header is required for rigid board-to-board interfaces. The 2.54mm pitch is standard for general-purpose electronics, while the gold plating offers superior corrosion resistance compared to tin options. Consider the stackable nature of the 929 series if vertical space constraints allow for multiple connector heights on a single assembly.

Headers, Male Pins Part Context

This component belongs to the 3M 929 Series, a line of versatile pin strip connectors known for their modular design. The series offers both horizontal and vertical orientations, allowing engineers to adapt to various spatial requirements. These connectors are widely used in industrial and commercial electronics where reliable signal transmission and mechanical stability are critical.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 3M 929 series headers with identical 46-pin, double-row, right-angle specifications. Verify that alternative parts maintain the same 2.54mm pitch and gold plating thickness to ensure electrical compatibility. Cross-reference with generic 2.54mm dual-row headers only if mechanical dimensions and current ratings align precisely.
