929852-01-20-10

929852-01-20-10 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists 3M. Its product description is 3M BOARDMOUNT SOCKET, 929 SERIES. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 929852-01-20-10

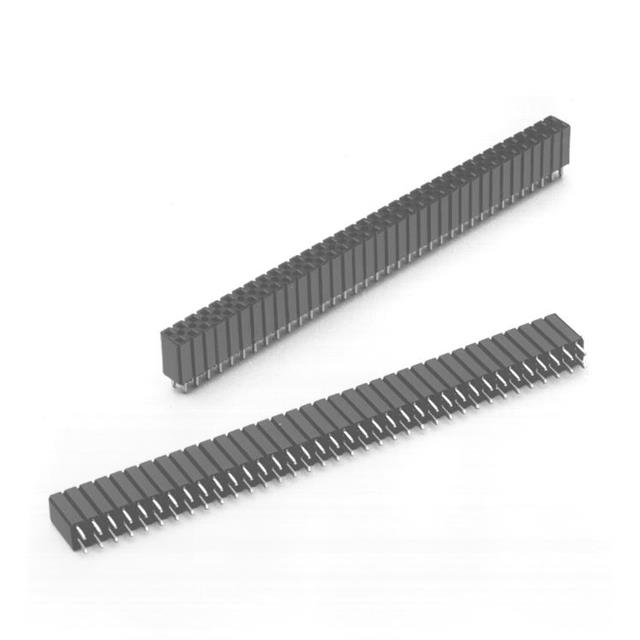

• Description：3M BOARDMOUNT SOCKET, 929 SERIES
• Series：929
• Mfr：3M
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board
• Number of Positions：40
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：10.0µin (0.25µm)
• Insulation Color：Black
• Insulation Height：0.325" (8.25mm)
• Contact Length - Post：0.125" (3.18mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：2A
• Voltage Rating：1500V

Headers, Receptacles, Female Sockets datasheet and documents for 929852-01-20-10
