95278-102-04LF

Headers, Male Pins Overview

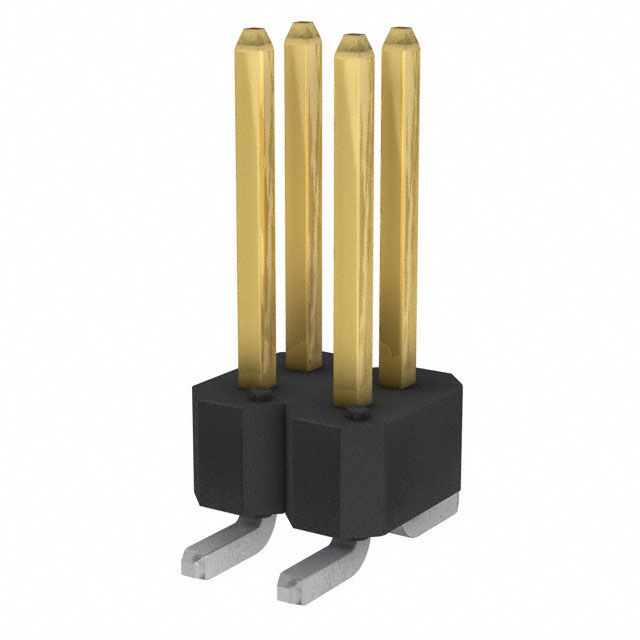

The Amphenol ICC (FCI) 95278-102-04LF is a BergStik® series board-to-board header connector designed for surface mount technology. It features a 2-row configuration with 4 positions and a 2.54mm pitch. The connector utilizes phosphor bronze contacts with GXT™ gold plating on the mating interface and tin plating on the tail. Rated for 3A current and 1.5kV voltage, it operates within a temperature range of -65°C to +125°C. The housing is black thermoplastic with UL94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Surface mount design with push-pull locking mechanism
• Duplex plated contacts for enhanced durability
• Square contact shape for secure mating

Headers, Male Pins Applications

• Board-to-board interconnections
• Mezzanine circuit applications
• High-density electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix against official datasheets to confirm plating type and length variations. Ensure compatibility with automated pick-and-place equipment due to the SMT mounting style. Confirm RoHS compliance status through manufacturer documentation prior to integration into production lines.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability header is required for dense PCB layouts. The 2.54mm pitch offers standard spacing compatibility. Consider the 10.8mm height for vertical clearance requirements. Evaluate the push-pull feature if manual insertion or removal frequency is anticipated in the assembly process.

Headers, Male Pins Part Context

This part belongs to the BergStik® II family, known for duplex plating and robust mechanical performance. It serves as a vertical header solution within Amphenol FCI's board-to-board portfolio. The series supports various pin counts and heights, providing flexibility for different stack-up requirements in compact electronic devices.

Headers, Male Pins Replacement Considerations

Cross-reference with other 95278 series variants for different pin counts or heights. Verify that substitute headers match the 2.54mm pitch and 2-row configuration. Ensure the replacement maintains the same surface mount footprint and electrical ratings.
