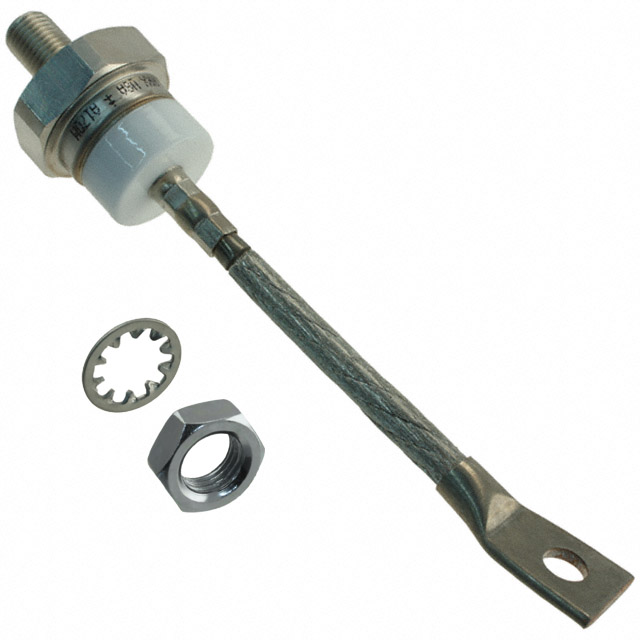

- Description：DIODE STANDARD 600V 100A DO205AA
- Series：-
- Mfr：Powerex Inc.
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：600 V
- Current - Average Rectified (Io)：100A
- Voltage - Forward (Vf) (Max) @ If：1.3 V @ 100 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：20 mA @ 600 V
- Capacitance @ Vr, F：-
- Mounting Type：Chassis, Stud Mount
- Package / Case：DO-205AA, DO-8, Stud
- Supplier Device Package：DO-205AA (DO-8)
- Operating Temperature - Junction：-40°C ~ 200°C
- Grade：-
- Qualification：-
Download product information
Overview
The A170M is a single-element silicon rectifier diode manufactured by Powerex Inc. It features a maximum average forward output current of 100A and a maximum repetitive peak reverse voltage of 1400V. The device operates within a junction temperature range of -40°C to 200°C and exhibits a maximum forward voltage of 1.3V at 100A. It utilizes a DO-205AA (DO-8) stud mount package, designed for high-power applications requiring robust thermal management and reliable performance under standard recovery conditions.
Feature Summary
- High-temperature operation capability up to 200°C junction temperature
- Stud mount construction for efficient heat dissipation
- Standard recovery characteristics suitable for general power conversion
Applications
- Industrial power supplies
- Motor drive rectification
- Welding equipment
- Inverter circuits
Procurement Notes
Verify the specific suffix or variant code against official Powerex documentation to ensure compatibility with required voltage and current ratings. Confirm RoHS compliance status if restricted substances are mandated. Check datasheet revisions for any updates to mechanical dimensions or thermal resistance values before finalizing procurement specifications.
Selection Notes
Select this component when a 100A continuous current rating and 1400V blocking voltage are required in a stud-mount configuration. Ensure the cooling system can maintain the junction temperature below 200°C under worst-case operating conditions. Compare thermal impedance characteristics with alternative packages if space constraints exist.
Part Context
The A170M belongs to the A170 series of high-power rectifiers from Powerex. This series is engineered for demanding industrial environments where reliability and high current handling are critical. The DO-205AA package provides a standardized mounting interface for integration into larger power modules or discrete assemblies.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure replacement devices match the 100A current, 1400V voltage, and DO-205AA mechanical footprint.
