AA2810AVBS/D

Overview

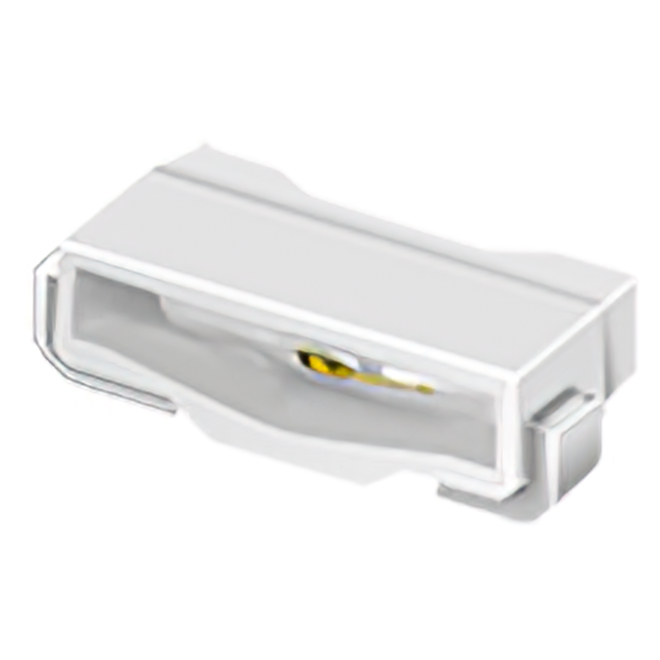

The Kingbright AA2810AVBS/D is a blue surface-mount LED from the KA-2810 series. It features a rectangular, colorless lens with dimensions of 2.5 x 1.2 mm and a height of approximately 0.9 mm. The device emits light at a peak wavelength of 470 nm with a viewing angle of 110 degrees. Typical forward voltage is 4 V, while maximum power dissipation is rated at 120 mW. The component supports a maximum forward current of 100 mA and offers a typical luminous intensity of 350 mcd.

Feature Summary

• Rectangular surface-mount package with a water-clear lens for high visibility
• Wide 110-degree viewing angle suitable for general indication applications
• RoHS compliant construction without lead content

Applications

• Panel status indicators
• Instrumentation displays
• Consumer electronics front panels

Procurement Notes

Verify the specific suffix 'D' against the manufacturer's latest datasheet to confirm tape-and-reel packaging specifications. Ensure that the 100 mA maximum forward current rating aligns with your circuit design thermal management capabilities. Confirm RoHS compliance requirements match your assembly standards before finalizing procurement orders.

Selection Notes

Select this component when a standard blue SMD indicator is required with a rectangular form factor. Compare the 4 V forward voltage drop against available drive voltages to ensure proper current limiting resistor selection. Consider the 110-degree viewing angle if broad visibility is necessary rather than focused beam directionality.

Part Context

This part belongs to the Kingbright KA-2810 series of single-color LEDs. The series utilizes standard surface-mount technology for automated assembly. The blue variant provides distinct visual signaling within multi-color indicator arrays or standalone status applications on printed circuit boards.

Replacement Considerations

• KA-2810AQBS-D
