AA3021LVBS/D

Overview

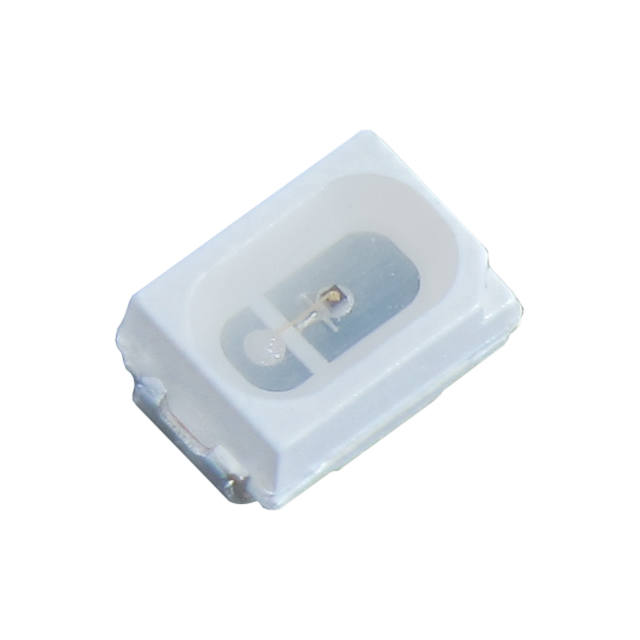

The AA3021LVBS/D is a single-color blue surface-mount LED manufactured by Kingbright. It features a compact 3.0 x 2.0 mm footprint with a height of 1.3 mm and utilizes a J-lead package configuration. The component emits light at a wavelength of 470 nm with a forward voltage of 2.65 V. It operates within a temperature range of -40°C to +85°C and complies with RoHS standards.

Feature Summary

• Compact 3.0 x 2.0 mm SMD form factor suitable for space-constrained designs
• Low power consumption characteristics for energy-efficient applications
• RoHS compliant construction supporting environmental regulations

Applications

• General indicator lighting in electronic devices
• Status indication on consumer electronics panels
• Backlighting for small form-factor instruments

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct binning and optical specifications. Confirm that the selected variant matches the required lead type and lens transparency for the intended PCB layout. Cross-reference the datasheet revision date to validate parameter accuracy before finalizing procurement orders.

Selection Notes

Select this component when a low-profile blue indicator is required for high-density circuit boards. The J-lead design facilitates automated placement while maintaining mechanical stability. Ensure the forward voltage rating aligns with the driving circuit capabilities to prevent overcurrent conditions during operation.

Part Context

This part belongs to Kingbright's 3020 series of surface-mount LEDs, designed for modern electronics manufacturing. The series emphasizes miniaturization without compromising optical performance. The AA3021LVBS/D specifically targets applications requiring reliable blue illumination in a minimal physical envelope.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify pin compatibility and thermal characteristics before integrating substitute components into existing designs.
