ABM11AIG-50.000MHZ-8-1Z-T

Crystals Overview

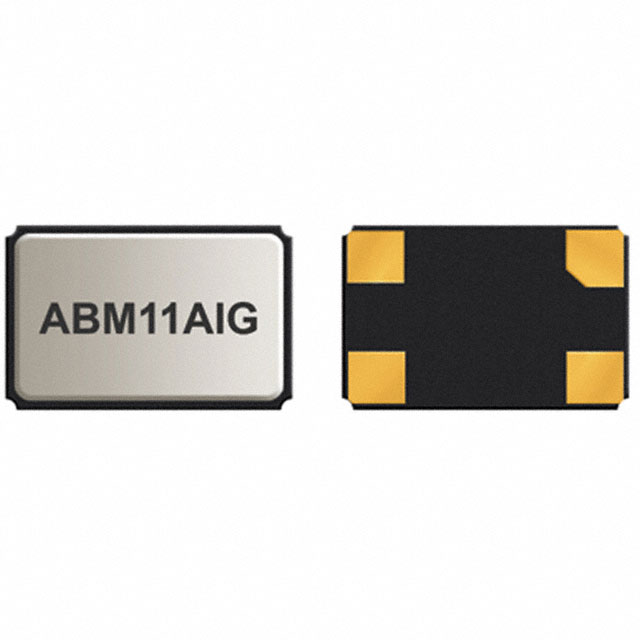

The ABM11AIG-50.000MHZ-8-1Z-T is a fundamental mode quartz crystal resonator manufactured by Abracon LLC. It operates at a nominal frequency of 50 MHz with a load capacitance of 8 pF. The component features a frequency tolerance of ±10 ppm and a stability of ±50 ppm over the operating temperature range. It is housed in a compact 4-SMD, no lead package measuring 2.00 mm x 1.60 mm with a maximum height of 0.55 mm. The device has an equivalent series resistance (ESR) of 50 Ohms and is qualified to AEC-Q200 standards for automotive applications.

Crystals Feature Summary

• Automotive-grade qualification compliant with AEC-Q200 standards
• Miniature surface-mount ceramic package suitable for space-constrained designs
• High-frequency stability across extended industrial temperature ranges

Crystals Applications

• Automotive electronic systems requiring precise timing references
• Microprocessor clock generation circuits
• Communication equipment and modems
• Test and measurement instrumentation

Crystals Procurement Notes

Verify that the specific part number matches the required frequency, load capacitance, and tolerance specifications for your circuit design. Confirm AEC-Q200 qualification status if automotive reliability is mandatory. Ensure compatibility with standard reflow soldering profiles due to the ceramic construction. Check datasheet for recommended pad layout to ensure proper thermal and mechanical performance during assembly.

Crystals Selection Notes

Select this component when a 50 MHz reference signal is needed in a small form factor. The 8 pF load capacitance must match the oscillator circuit requirements. Consider the ±10 ppm initial tolerance and ±50 ppm total stability against system jitter budgets. The low profile and SMD package facilitate automated assembly. Verify that the 50 Ohm ESR aligns with the oscillator driver strength capabilities.

Crystals Part Context

This part belongs to the ABM11AIG series, which consists of miniature ceramic base surface-mount crystals designed for automotive and industrial environments. The series offers various frequencies and package sizes, providing designers with options for different spatial and electrical constraints while maintaining high reliability and consistent performance under harsh conditions.

Crystals Replacement Considerations

SA164500F15HKR from CTS-Frequency Controls is listed as a substitute. Verify that the replacement maintains identical frequency, load capacitance, tolerance, stability, and package dimensions before integration.
