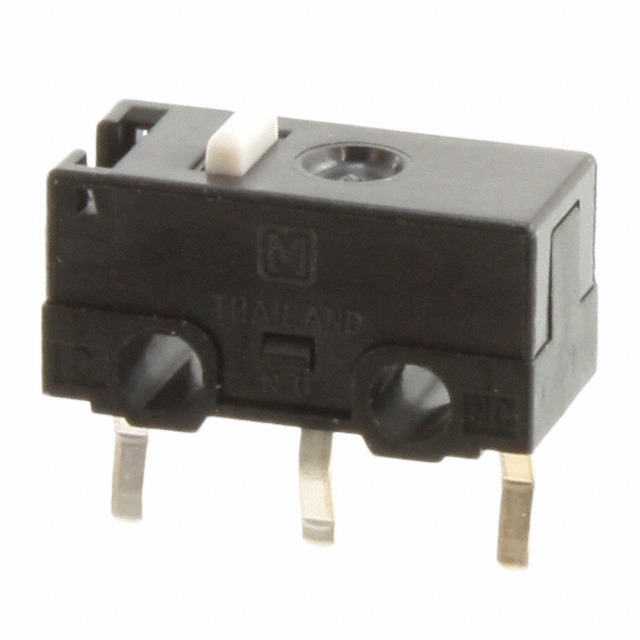

AH14609-A

AH14609-A is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACTION SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for AH14609-A

• Description：SWITCH SNAP ACTION SPDT 3A 125V
• Series：AH1
• Mfr：Panasonic Electric Works
• Package：Tube
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：3A (AC), 2A (DC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Through Hole
• Termination Style：PC Pin
• Ingress Protection：-
• Features：-
• Operating Force：150gf
• Release Force：20gf
• Operating Position：0.217" (5.5mm)
• Pretravel：0.020" (0.5mm)
• Differential Travel：0.005" (0.13mm)
• Overtravel：0.010" (0.25mm)
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：30 V

Limit Switches datasheet and documents for AH14609-A
