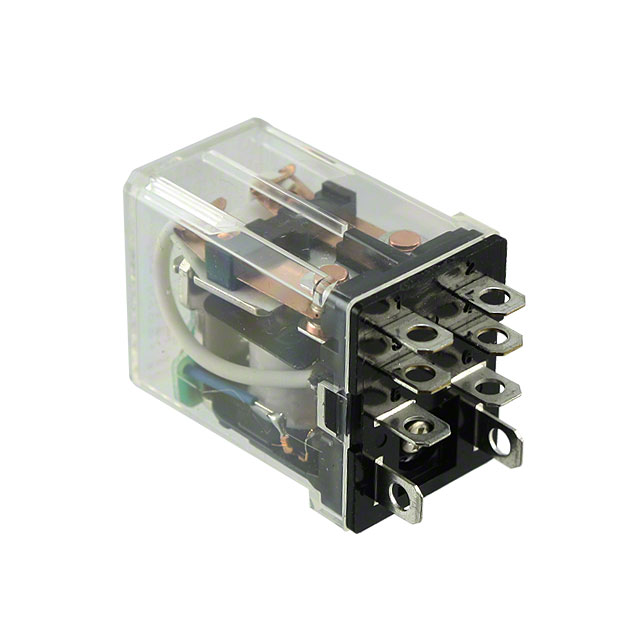

Power Relays, Over 2 Amps AHK22124 product image

AHK22124

Description：RELAY GEN PURPOSE DPDT 10A 24V
Series：AHK
Mfr：Panasonic Electric Works
Package：Bulk

SKU:315a6f4e0092 Category: Power Relays, Over 2 Amps Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AHK22124 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is RELAY GEN PURPOSE DPDT 10A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AHK22124

Description：RELAY GEN PURPOSE DPDT 10A 24V
Series：AHK
Mfr：Panasonic Electric Works
Package：Bulk
Mounting Type：Socketable
Coil Voltage：24VDC
Contact Form：DPDT (2 Form C)
Contact Rating (Current)：10:00 AM
Switching Voltage：250VAC, 125VDC - Max
Load - Max Switching：2500VA, 1250W
Coil Current：37 mA
Coil Type：Non Latching
Features：Lighted Indicator
Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
Seal Rating：-
Coil Insulation：-
Must Operate Voltage：19.2 VDC
Must Release Voltage：2.4 VDC
Operating Temperature：-50°C ~ 60°C
Contact Material：Silver Tin Oxide (AgSnO)
Approval Agency：cURus, TUV
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：25 ms
Release Time：25 ms

Power Relays, Over 2 Amps datasheet and documents for AHK22124

AHK22124
