AM27070601

Crystals Overview

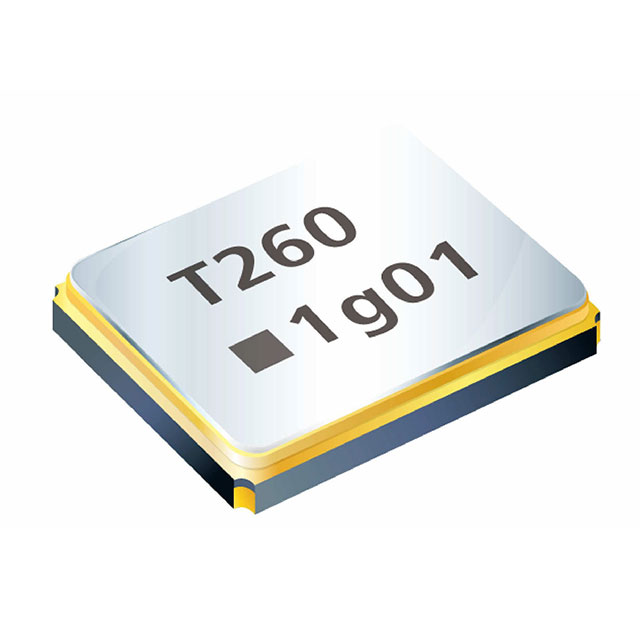

The AM27070601 is a timing crystal manufactured by TXC Corporation. It operates at a fundamental frequency of 27 MHz with a load capacitance of 12 pF. The component features a tolerance of ±20 ppm and utilizes a 4-SMD, No Lead package measuring 3.2 mm in length and 2.5 mm in width. It is designed for surface mount technology applications.

Crystals Feature Summary

• Provides stable timing signals for electronic circuits
• Utilizes a compact surface mount form factor
• Designed for integration into standard PCB layouts

Crystals Applications

• General timing applications requiring 27 MHz reference
• Consumer electronics circuit boards
• Industrial control systems

Crystals Procurement Notes

Verify the specific RoHS compliance status through official documentation before procurement. Confirm that the 4-SMD package dimensions align with the target PCB footprint. Ensure the ±20 ppm tolerance meets the system requirements. Check current availability as supply may be restricted in certain regions.

Crystals Selection Notes

Select this component when a 27 MHz crystal with 12 pF load capacitance is required. Consider the ±20 ppm tolerance for frequency accuracy needs. Evaluate the 3.2 mm x 2.5 mm SMD package against available board space. Compare against other TXC series if wider temperature ranges are necessary.

Crystals Part Context

This part belongs to the TXC Corporation crystals category. It serves as a passive frequency control element. The product line includes various frequencies and packages. The AM27070601 specifically targets standard timing requirements.

Crystals Replacement Considerations

Cross-reference with other 27 MHz crystals from TXC or competitors. Verify identical load capacitance and package dimensions. Ensure equivalent frequency stability and operating temperature range.
