APL3015SGC-F01

LED Indication - Discrete Overview

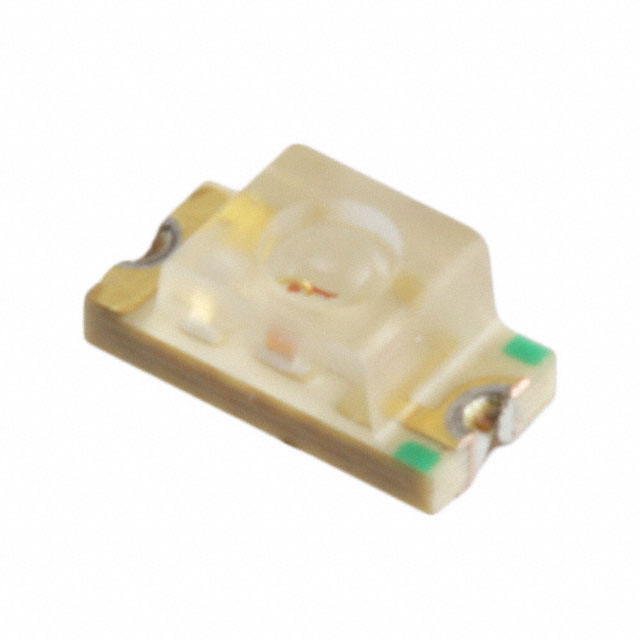

The Kingbright APL3015SGC-F01 is a single-color green surface-mount LED in the 1206 (3216 metric) package. It features an inner dome lens with water-clear transparency and emits at a peak wavelength of 568 nm. The component operates with a forward current of 20 mA, a forward voltage of 2.2 V, and delivers a luminous intensity of 20 mcd. Rated for a maximum power dissipation of 75 mW, it supports a wide operating temperature range from -40°C to +85°C and holds moisture sensitivity level 3 certification.

LED Indication - Discrete Feature Summary

• Features an inner dome lens design for optimized light distribution
• Complies with RoHS environmental safety standards
• Supports standard SMT reflow soldering processes

LED Indication - Discrete Applications

• General indicator lighting in electronic devices
• Status indication on control panels
• Low-power visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific suffix F01 against manufacturer documentation to confirm reel quantity and tape specifications. Ensure compatibility with moisture sensitivity level 3 handling requirements during storage and assembly. Cross-reference the exact part number with official Kingbright databases to avoid confusion with similar variants in the APL3015 series.

LED Indication - Discrete Selection Notes

Select this component when a compact 1206 footprint is required for green status indication. Consider the 20 mcd intensity suitable for direct viewing applications. Evaluate the 2.2 V forward voltage drop against circuit supply constraints. Confirm that the 75 mW power rating aligns with thermal management capabilities within the target enclosure design.

LED Indication - Discrete Part Context

This LED belongs to the Kingbright APL3015 series, designed for surface-mount technology applications. The series offers various color options within a standardized 3.0 x 1.5 x 1.4 mm package. It targets manufacturers seeking reliable, low-profile components for modern printed circuit board layouts requiring consistent optical performance.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other Kingbright 1206 green LEDs such as APL3015QGC or APL3015SRCPRV-F01 if red is acceptable. Verify pinout compatibility and spectral characteristics before substitution. Consult official cross-reference guides for equivalent parts from other manufacturers meeting identical mechanical and electrical specifications.
