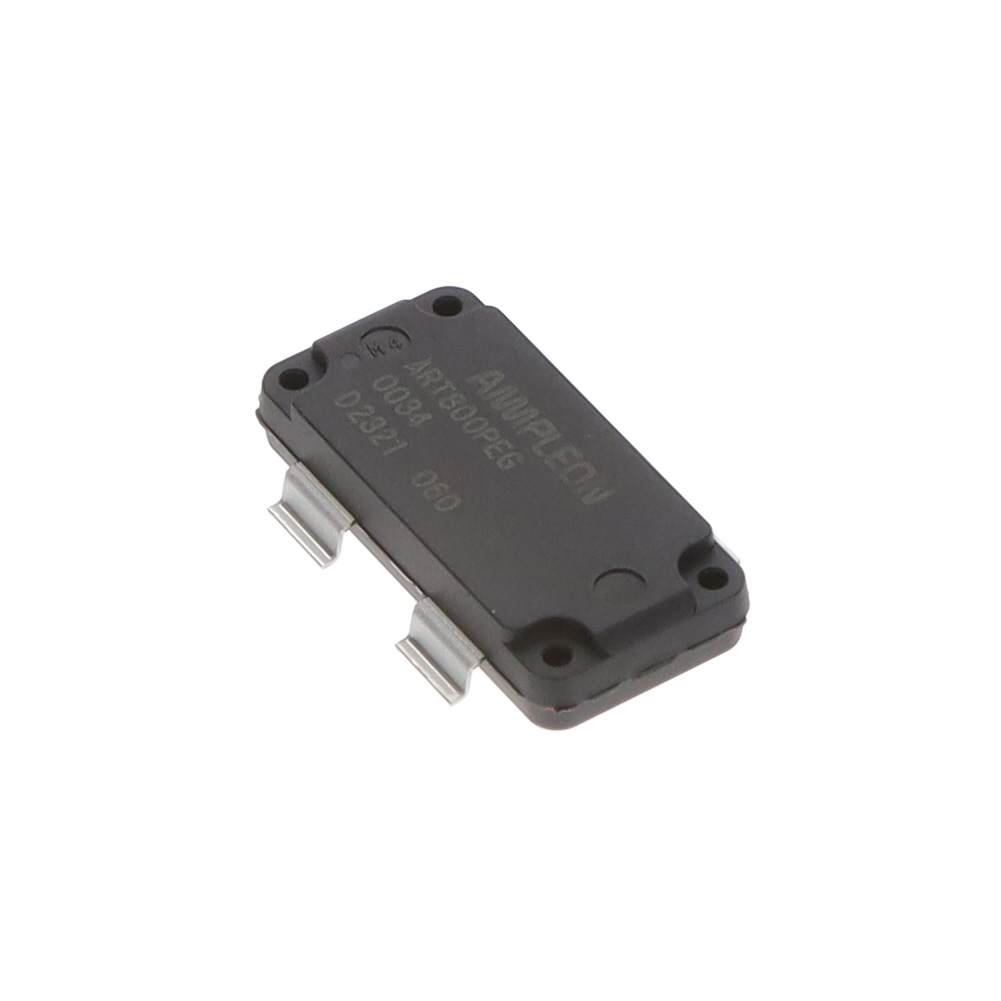

ART800PEGY

Overview

The ART800PEGY is an 800 W LDMOS RF power transistor based on Advanced Rugged Technology, designed for ISM, broadcast, and communications applications. It operates from 1 MHz to 650 MHz with a dual N-Channel configuration in an OMP-780-4G-1 package. Key electrical parameters include a drain-source breakdown voltage of 203 V minimum, gate-source threshold voltage of 2.6 V maximum, and drain-source on-state resistance of 0.200 Ω. At 108 MHz and 65 V, it delivers 800 W output power with typical gain of 29.2 dB and drain efficiency of 74.5%. The device supports Class E operation at 53 V and is qualified up to 65 V.

Feature Summary

• Integrated dual-sided ESD protection enables Class C operation and complete switch-off capability.
• High ruggedness ensures no device degradation under load mismatch conditions.
• Excellent thermal stability and high efficiency across the operating frequency range.
• Qualified for broadband operation supporting a wide range of industrial and broadcast applications.

Applications

• Plasma generators
• MRI systems
• Particle accelerators
• FM radio broadcasting
• VHF TV broadcasting

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to ensure correct packaging and handling requirements. Confirm RoHS compliance status via official product details before integration. Ensure proper ESD precautions are observed during storage and assembly, as the device is sensitive to electrostatic discharge. Validate that the procurement channel provides authentic components matching the specified part number and revision history.

Selection Notes

Select this component for designs requiring high power density and ruggedness in the 1 MHz to 650 MHz range. Consider the OMP-780-4G-1 package dimensions for thermal management and PCB layout. Evaluate the need for dual-gate drive circuits due to the dual N-Channel architecture. Verify that the application voltage does not exceed the qualified limit of 65 V for optimal reliability and performance characteristics.

Part Context

This part belongs to Ampleon's ART (Advanced Rugged Technology) series of LDMOS transistors. It shares core electrical specifications with the ART800PE but differs in packaging and handling characteristics. The ART800PEGY is specifically packaged for reel supply, distinguishing it from other variants in the family while maintaining identical RF performance metrics.

Replacement Considerations

The ART800PE serves as the primary functional equivalent within the same family. Verify package compatibility when substituting, as the ART800PE uses the OMP-780-4F-1 package outline. Ensure that any replacement maintains the required ruggedness and ESD protection levels for the intended application environment.
