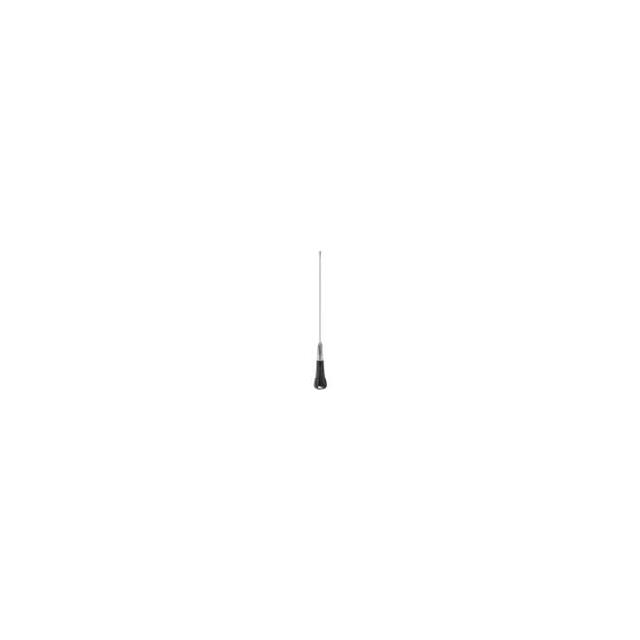

ASP7795

$28.45

Description：VIBRATION RESISTANT COLLINEAR AN
Series：-
Mfr：Amphenol PCTEL
Package：Bag

SKU:912335575796 Category: RF Antennas Brand: Amphenol PCTEL

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ASP7795 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Amphenol PCTEL. Its product description is VIBRATION RESISTANT COLLINEAR AN. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ASP7795

Description：VIBRATION RESISTANT COLLINEAR AN
Series：-
Mfr：Amphenol PCTEL
Package：Bag
RF Family/Standard：-
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：457.5MHz
Frequency Range：445MHz ~ 470MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：3dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：15.000" (381.00mm)
Applications：-
Power - Max：150 W

Antennas RF datasheet and documents for ASP7795

ASP7795

Antennas RF Overview

The ASP7795 is a vertical polarization mobile antenna from the Chrome Coil series, manufactured by Amphenol PCTEL. It operates within the 445 MHz to 470 MHz frequency range with a center frequency of 457.5 MHz. The component provides 3 dBi gain and maintains a 50 Ohm impedance. It features a Dura-Flex spring construction and utilizes a magnetic mounting base for installation.

Antennas RF Feature Summary

Vertical polarization design optimized for mobile communication applications
Chrome Coil series construction utilizing Dura-Flex spring technology
Magnetic mounting base for secure attachment to vehicle surfaces

Antennas RF Applications

Mobile radio communications
Vehicle-mounted telemetry systems
Sub-GHz wireless data transmission

Antennas RF Procurement Notes

Verify that the specific order matches the ASP7795 model number to ensure correct 445-470 MHz operation. Confirm the requirement for magnetic mounting compatibility with the target vehicle surface. Check datasheet specifications for environmental sealing ratings if outdoor exposure is anticipated. Ensure connector type requirements align with system integration needs before finalizing procurement.

Antennas RF Selection Notes

Select this model when a 3 dBi gain antenna is required for the 445-470 MHz band. The magnetic mount offers flexibility for temporary or semi-permanent vehicle installations. Consider the physical dimensions and weight constraints of the mobile platform. Verify that the vertical polarization aligns with the network infrastructure requirements.

Antennas RF Part Context

This component belongs to the Chrome Coil product line, which specializes in durable spring-style antennas for mobile environments. The Mosaic design indicates a focus on performance within a compact form factor suitable for vehicular use. It serves as a specialized solution for UHF mobile communications rather than general-purpose fixed station applications.
