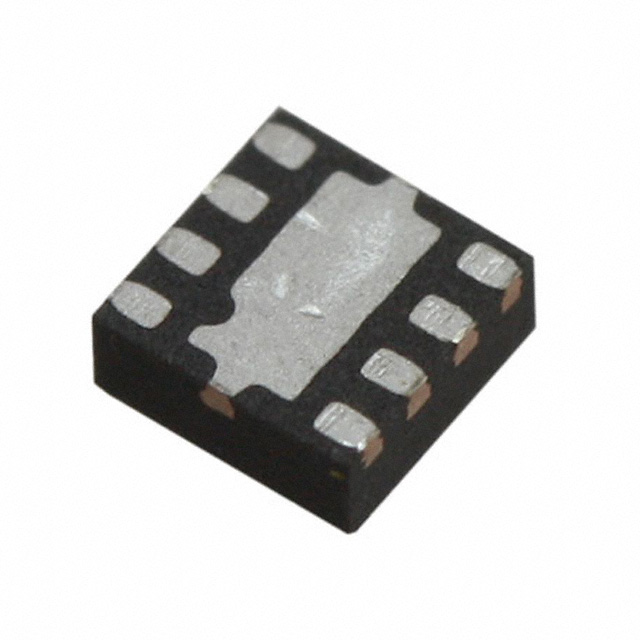

ATF-531P8-BLK

Overview

The ATF-531P8-BLK is a single-voltage, high-linearity, low-noise Enhancement-mode Pseudomorphic High Electron Mobility Transistor (E-pHEMT) manufactured by Broadcom Limited. Packaged in a surface-mount SOT-89 format, the device operates within a frequency range of 50 MHz to 6 GHz. It is engineered for medium-power amplification applications requiring high linearity and low noise figures. The component undergoes 100% RF and DC testing to ensure performance consistency across cellular, PCS, WCDMA, WLAN, and general-purpose discrete amplifier designs.

Feature Summary

• Single voltage operation capability
• High linearity and gain characteristics
• Low noise figure performance
• SOT-89 standard package configuration

Applications

• Front-end Low Noise Amplifier (LNA) stages for Cellular/PCS and WCDMA wireless infrastructure
• Driver or Pre-driver Amplifier functions for WLAN, WLL/RLL, and MMDS applications
• General purpose discrete E-pHEMT amplifiers requiring medium power and high linearity

Procurement Notes

Verify the specific suffix 'BLK' against official Broadcom documentation to confirm packaging details, such as tape-and-reel availability, as this designation may indicate specific handling or lot requirements. Ensure compatibility with RoHS6 standards and check for any Product Change Notices (PCNs) related to manufacturing updates before procurement.

Selection Notes

Select this component for designs operating between 50 MHz and 6 GHz that require a balance of high linearity and low noise. Consider the SOT-89 package constraints for thermal management and PCB layout. Verify that the single-voltage requirement aligns with the system's power supply architecture and that the medium-power output capabilities meet the application's signal drive needs.

Part Context

This E-pHEMT device belongs to Broadcom's portfolio of radio frequency transistors designed for wireless infrastructure. It serves as a critical active component in signal chain front-ends, bridging antenna interfaces with subsequent processing stages. The technology leverages pseudomorphic HEMT structures to achieve superior performance metrics compared to traditional GaAs FETs in similar form factors.

Replacement Considerations

Direct substitutes include other single-voltage E-pHEMT devices in SOT-89 packages from Broadcom or Avago, such as the ATF-53189. Evaluate alternative components based on matching frequency ranges, noise figures, and linearity specifications to ensure seamless integration without redesigning the surrounding bias network.
