ATF-531P8-TR1

Overview

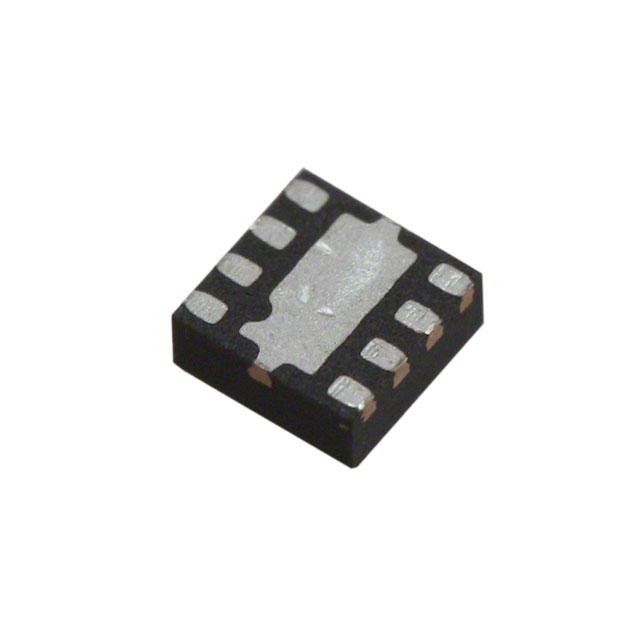

The ATF-531P8 is a single-voltage enhancement mode pseudomorphic HEMT (E-pHEMT) designed for high linearity and low noise applications. It operates within a frequency range of 50 MHz to 6 GHz and is housed in an 8-lead JEDEC-standard leadless plastic chip carrier (LPCC) package measuring 2.0 x 2.0 x 0.75 mm. At a typical bias of 4V and 135 mA, the device provides a gain of 20 dB, a noise figure of 0.6 dB, and an output IP3 of 38 dBm at 2 GHz. The component supports a maximum drain-source voltage of 7 V and features excellent thermal dissipation through backside metalization.

Feature Summary

• Single positive gate voltage operation eliminates the need for negative gate bias associated with depletion mode devices.
• High linearity performance combined with low noise figure suitable for medium-power amplification.
• Thermally efficient LPCC package with backside metalization for superior heat dissipation and solder reflow verification.

Applications

• Front-end LNA Q1 and Q2 driver or pre-driver amplifier for Cellular/PCS and WCDMA wireless infrastructure
• Driver amplifier for WLAN, WLL/RLL, and MMDS applications
• General purpose discrete E-pHEMT for other high linearity applications

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current documentation to confirm container type and quantity. The datasheet lists options including 7-inch reels, 13-inch reels, and antistatic bags. Confirm RoHS compliance status and availability directly with authorized distributors as product lifecycles may change.

Selection Notes

Select this component when a single positive gate voltage is required to simplify bias circuitry. Ensure the design accommodates the 2x2 mm LPCC package dimensions and utilizes the backside metalization for effective thermal management. Verify that the operating frequency falls within the 50 MHz to 6 GHz range and that the required linearity and noise specifications align with the device's typical performance curves.

Part Context

The ATF-531P8 is part of Broadcom's portfolio of RF semiconductor solutions, originally developed under Avago Technologies. It belongs to the category of pseudomorphic HEMT transistors engineered for wireless communication systems. The device represents a shift toward simplified biasing architectures while maintaining high-performance metrics for signal integrity in modern radio frequency front ends.

Replacement Considerations

Consult official replacement guides or contact the manufacturer for verified substitute part numbers. Do not assume functional equivalence with other models based on generic specifications alone.

FAQ

What is the operational gate voltage requirement for the ATF-531P8?

The ATF-531P8 uses enhancement mode technology, requiring a single positive gate voltage (typically around 0.68 V at 4V, 135 mA bias) and eliminating the need for a negative gate voltage.

How does the package design assist in manufacturing quality control?

The backside metalization of the LPCC package provides excellent thermal dissipation and serves as visual evidence of proper solder reflow during assembly.

What is the Linearity Figure of Merit (LFOM) specification?

The LFOM is specified as 10.7 dB, which is calculated essentially as the Output IP3 divided by the DC bias power.
