BD50FD0WHFP-TR

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Overview

The BD50FD0WHFP-TR is a fixed-output low saturation linear regulator from the BDxxFD0 series, manufactured by ROHM Semiconductor. It provides a fixed 5V output with a maximum continuous current of 2A. The device supports an input voltage range from 6V to 32V and withstands up to 35V. Key electrical parameters include a typical dropout voltage of 0.40V at 1A load, a ripple rejection ratio of 55dB, and output accuracy of ±1.0% at 25°C. It operates within a temperature range of -40°C to 105°C.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Feature Summary

• Integrated overcurrent protection and thermal shutdown circuits prevent IC damage during short circuits or overload conditions.
• Low saturation design enables efficient regulation with minimal voltage drop under high load currents.
• Includes a shutdown function for power management control.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Applications

• General purpose power supply regulation in industrial equipment
• Voltage regulation for embedded systems and microcontrollers
• Power management in consumer electronics requiring stable 5V rails

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Procurement Notes

Verify the exact part number suffix against official ROHM documentation to ensure compatibility with required packaging and tape specifications. Confirm that the application environment remains within the specified operating temperature range and does not involve automotive use, as this standard-grade product is explicitly not recommended for vehicle-mounted equipment. Check for RoHS compliance status in the latest datasheet.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Selection Notes

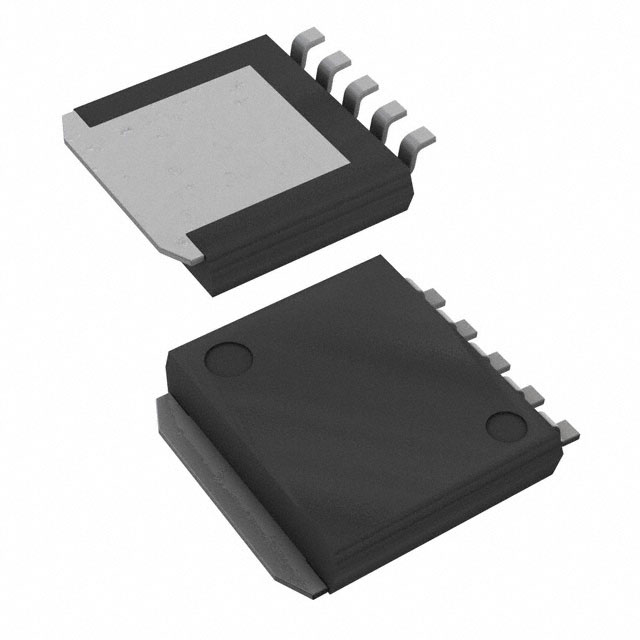

Select this component when a fixed 5V output is required with up to 2A load capability and input voltages between 6V and 32V. Consider the HRP-5 package for surface mount applications where thermal performance and compact footprint are priorities. Ensure the system design accounts for the typical 0.40V dropout voltage at 1A to maintain regulation margins.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Part Context

This part belongs to the BDxxFD0 series of low saturation LDO regulators from ROHM Semiconductor. The series offers both fixed and adjustable output options with maximum currents up to 2A. These regulators are designed for standard-grade applications, providing robust protection features and high reliability in general electronic devices.

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators Replacement Considerations

BD80FD0WHFP-TR (8V output)

Voltage Regulators - Linear, Low Drop Out (LDO) Regulators FAQ

Is the BD50FD0WHFP-TR suitable for automotive applications?

No, this product is classified as standard grade and is explicitly not recommended for use in vehicle-mounted equipment.

What protection circuits are included in this regulator?

The device includes overcurrent protection to prevent damage from output shorts and thermal shutdown protection to prevent overheating during overload conditions.
